Information

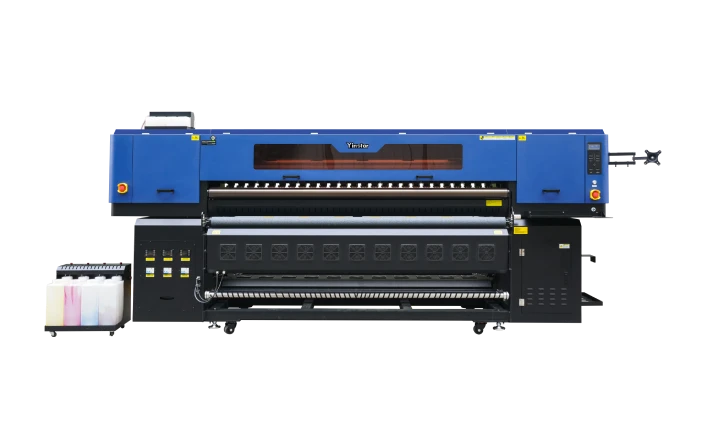

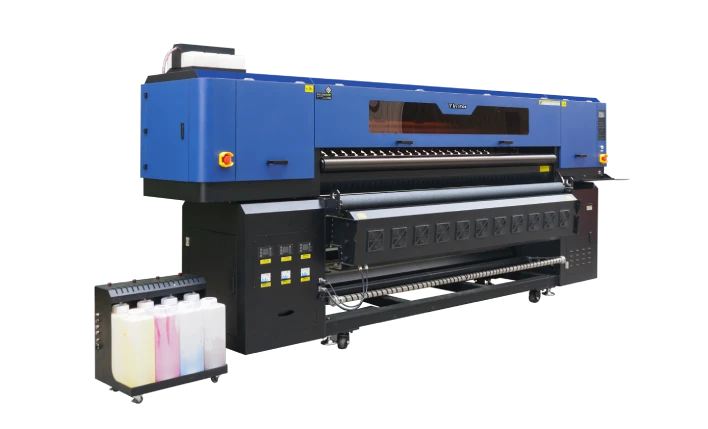

A heavy-duty, ultra-high-speed industrial sublimation printer designed for mass textile production. With its 2.2-meter printing width and massive 12-head configuration, it is built for extreme productivity and 24/7 stable operation in large-scale garment and home textile factories.
Main Parameters
| Printer | 2212 |
| Print head | 12 head Eps i3200-A1 |
| Print width | 2200mm |
| Speed | 1Pass:533sqm/h 2Pass:265sqm/h |
| Package size | 389*190*135cm |
| Weight | 1100KG |
| Power | Machine 7.5kw+heating 5KW |
| Ink bottle | 4000ML*4 |
| Printing material | Sublimation paper(Diameter 250 mm weight about 180KG) |
| Voltage | 220V/110V 50HZ/60HZ (Standard) |
| Ink | C/M/Y/K |
| Damper heating | Equipped |
| Warranty | 1 Year (Except Print head and Ink System) |
Top Features

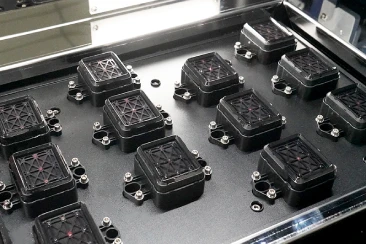

Advanced capping station

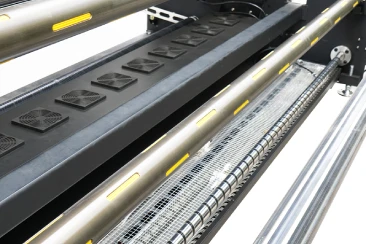

Air shaft paper winding and unwinding system

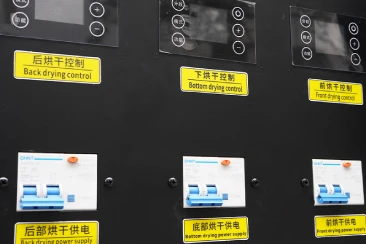

Front, lower and rear three-stage drying and heating control system

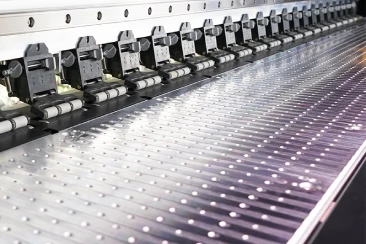

High-precision suction platform with exceptional accuracy

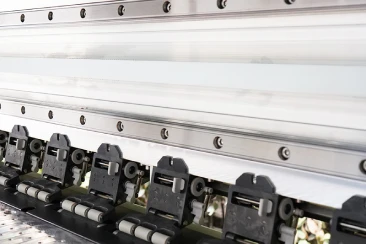

Imported silent linear guide rail

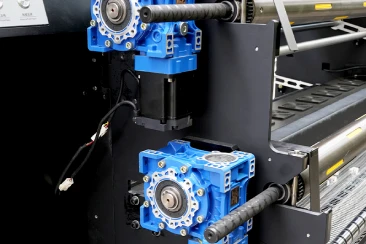

Y direction paper feeding 400W Leadshine servo motor
Selling Points
Extreme Throughput
Reaches speeds of up to 533m²/h, making it one of the most efficient sublimation solutions for industrial-scale output.
Industrial Reliability
Features an advanced capping station and 3-level-pressure adjustable pinch rollers to ensure precise media tracking even at top speeds.
Heavy-Duty Media Handling
Supports large sublimation paper rolls up to 400mm in diameter and 350kg in weight, reducing the frequency of roll changes.
Applications
Mass Textile Production: Large-volume printing for fashion apparel, bed linens, and curtains.
Industrial Fabric Processing: High-speed production of carpets, floor mats, and upholstery.
Wide-Format Soft Signage: Large-scale fabric banners, teardrop flags, and backdrop displays.
