Information

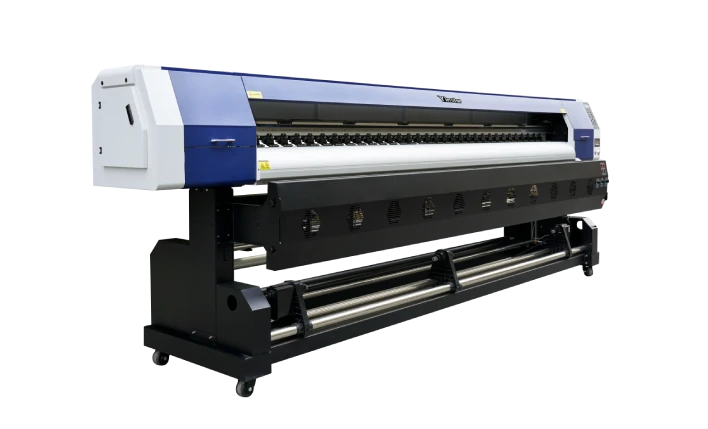

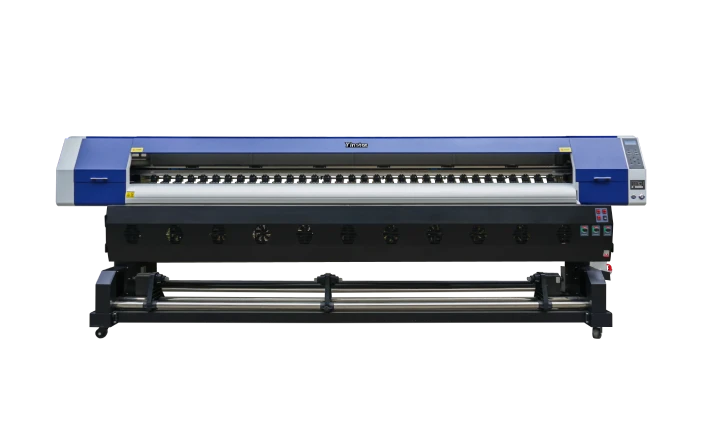

A professional super wide-format printer designed for vehicle stickers, photo paper and PP paper, providing stable ink supply, precise color control and intelligent drying for industrial high-efficiency and high-quality output.
Main Parameters
| Technical Parameters | S3200 |
| Print width | 3200mm |
| Print head | XP600/F1080-A1/I3200-E1 |
| Color | C/M/Y/K |
| XP600/F1080 Print Speed | 40㎡/h 2pass |
| 24㎡/h 4pass | |
| I3200-E1 Print Speed | 75㎡/h 2pass |
| 32㎡/h 4pass | |
| Printing resolution | 1440*3200dpi |
| Cleaning system | Cleaning system |
| Medium dipose | Standard automatic feeding system |
| Ink | Eco solvent ink |
| Operation Environment | Temperature:18-35℃,Humidity:40RH-70RH |
| Stoving method | Forepart and rear two stages heating |
| Carriage | Auto up and down carriage |
| RIP | Maintop is free, photoprint 300USD/pieces |
| Medium type | vinyl,flex banner,canvas,photo paper,PP paper,light film |
| Car sticker, Wallpaper,leather,gum,light cloth | |
| Connector | USB 2.0 |
| Power consume | 6600W |
| Driven system | Windows xp, win 7/8/10 |
| Power supply | 220V 50-60HZ (110V, option) |
| Packing size | 449*95*170cm |
| Weight | 860kg |
| Warranty | 1 year warranty except printhead and ink system |
| Language | English/ Chinese |
Top Features

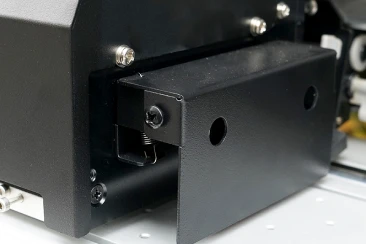

Anti-collision device

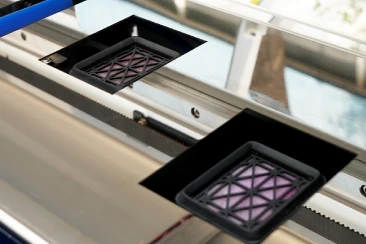

High precision machinery ink station
Anti-collision system

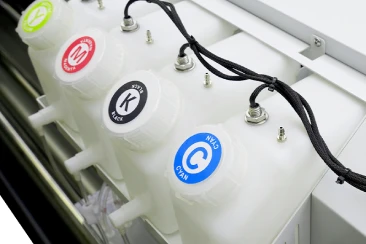

Large capacity ink bottle

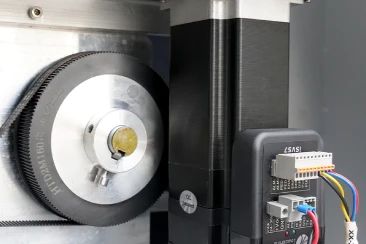

Leadshine servo motor
Paper feeding induction system
Selling Points

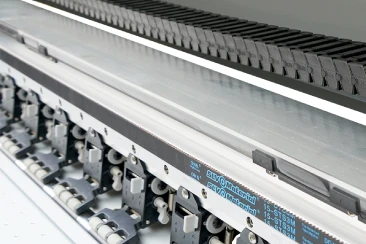

Equipped with Hiwin silent linear guides, adjustable constant-pressure secondary ink cartridges, low-ink alarm, full-aluminum capping station and intelligent start–stop drying; supports ICC color management and user-adjustable curves and density.
Applications
Large-format vehicle sticker printing, photo paper, PP paper and high-definition commercial advertising graphics production.
