Information

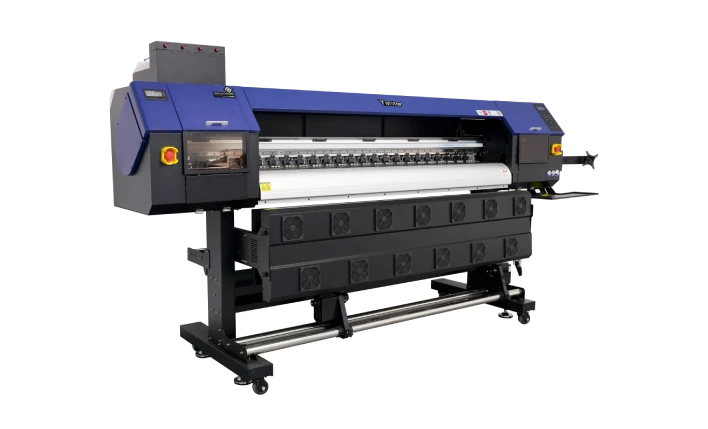

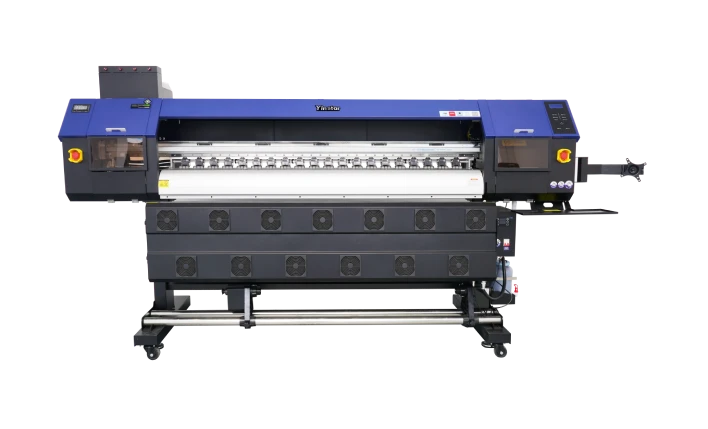

The YD8194-3 is the high-throughput machine in the eco-solvent range: four Epson i3200-E1/A1/U1 printheads across a 1840mm (≈ 6 ft) working width, rated at 59 m²/h in 4-pass. Heater output is 7,400W on top of 1,900W for the printer.
Like the YD2000 platform it accepts eco-solvent, sublimation and UV ink, printing vinyl, photo paper, car sticker, flex banner and sublimation paper. Dual Leadshine servo motors with THK silent rails carry the carriage, and heating is split into three zones.
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YD8194-3 |
| Printhead | 4 × Epson i3200-E1 / A1 / U1 |
| Print speed | 4-pass: 59 m²/h |
| Working size | 1840 mm (≈ 6 ft) |
| Ink | Eco-solvent ／ Sublimation ／ UV ink |
| Printing material | Vinyl, photo paper, car sticker, flex banner, sublimation paper and similar |
| Heating | Front, middle and back — three parts |
| RIP software | Maintop ／ Photoprint |
| Control board | Hoson |
| Output power | 1,900 W (printer) + 7,400 W (heater) |
| Voltage | AC 220 V, 50/60 Hz |
| Working environment | 15–30 °C, humidity 40–60% |
| Packing size | 334 × 92 × 109 cm |
| Weight | 470 kg |
Top Features
Selling Points

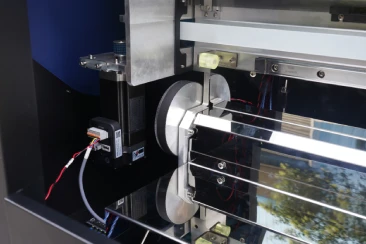

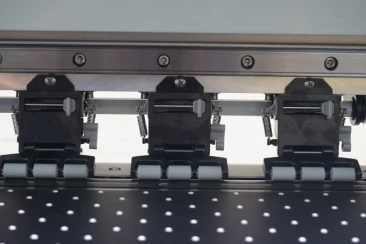

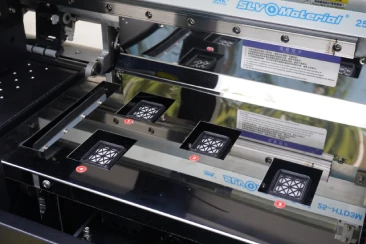

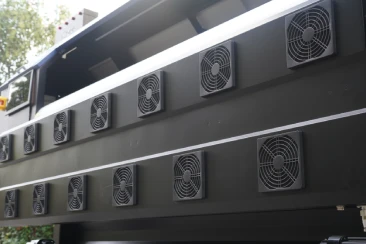

Equipped with pressure-adjustable pinch rollers, advanced capping station, X+Y leadshine servo motors, a high-power intelligent drying system, and an anti-collision device, all controlled by a stable Hoson board for reliable industrial operation.
Applications
- High-volume outdoor advertising — flex banner and billboard production at 59 m²/h.
- Signage factories where output per shift is the buying criterion.
- Print service providers running solvent and sublimation work on one platform.
Compare with other models in the same series: YD8324-3 Inkjet Printer, YD3200-X5 Inkjet Printer, YD7212-3 Inkjet Printer, YD1200-2H Packaging Inkjet Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What is the maximum output speed? | 59 m²/h at 4-pass. |
| 2 | What power supply is required? | 1,900 W printer plus 7,400 W heater at AC 220 V, 50/60 Hz. This is a significant load — confirm supply capacity and use a dedicated circuit. |
| 3 | Which media does it handle? | Vinyl, photo paper, car sticker, flex banner and sublimation paper. |
