Information

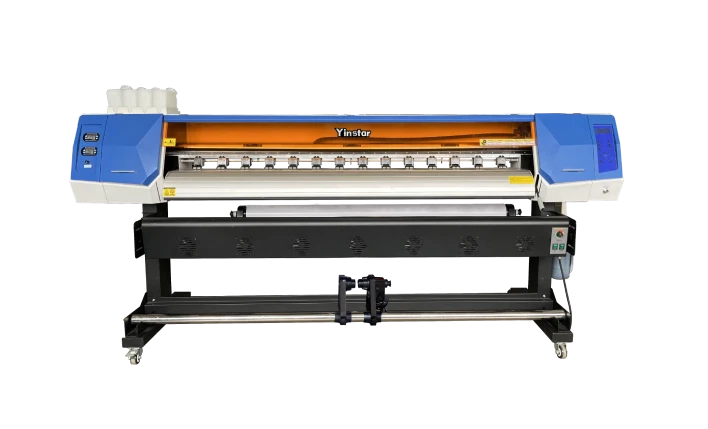

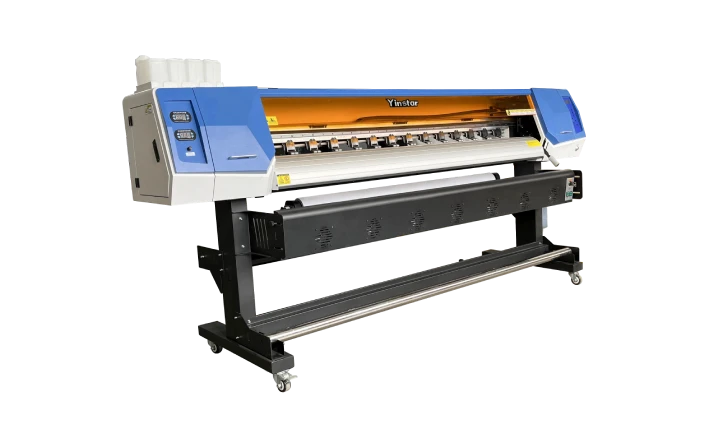

The YD2000-GX5 is an 1820mm (≈6 ft) eco-solvent printer with a single Epson F1080-A1 printhead, rated at 7 m²/h in 4-pass and 5 m²/h in 6-pass. The same platform is offered as the YD2000-D3 with a single Epson i3200-A1 / E1 / U1 head, rated at 14 m²/h in 4-pass and 9 m²/h in 6-pass.
One machine covers three ink chemistries — eco-solvent, sublimation and UV — across vinyl, photo paper, car sticker, flex banner, leather and canvas. Continuous ink supply uses large tanks with secondary cartridges, and heating is split into front, middle and back zones.
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YD2000-GX5 ／ YD2000-D3 |
| Printhead | 1 × Epson F1080-A1 (GX5) ／ 1 × Epson i3200-A1/E1/U1 (D3) |
| Print speed (F1080-A1) | 4-pass: 7 m²/h ／ 6-pass: 5 m²/h |
| Print speed (i3200) | 4-pass: 14 m²/h ／ 6-pass: 9 m²/h |
| Working size | 1820 mm (≈ 6 ft) |
| Ink | Eco-solvent ink ／ Sublimation ink ／ UV ink |
| Printing material | Vinyl, photo paper, car sticker, flex banner, leather, canvas and similar |

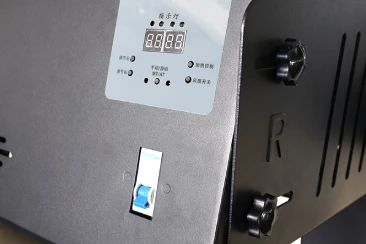

| Heating | Front, middle and back — three parts |
| RIP software | Maintop (Photoprint optional) |
| Control board | Sunyung ／ Hoson |
| Output power | 1,900 W (printer) + 2,000 W (heater) |
| Voltage | AC 220 V, 50/60 Hz |
| Working environment | 15–30 °C, humidity 40–60% |
| Packing size | 290 × 76 × 65 cm |
| Weight | 240 kg |
Top Features
Selling Points

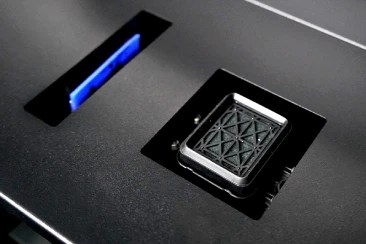

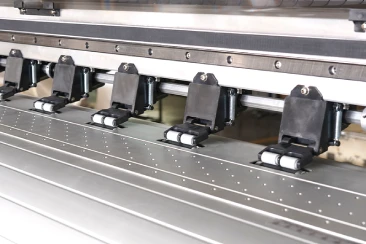

Features precision pinch rollers, advanced capping station, suction-type platform, user-friendly control panel, and reliable motor configuration (X: servo motor, Y: step motor); equipped with Hoson/Sunyung board and Maintop rip software.
Applications
- Small-batch, high-variety signage work — the brief this platform was designed against.
- Vehicle graphics and stickers — car sticker and vinyl media.
- Multi-market print shops — one machine covering solvent, sublimation and UV work.
Compare with other models in the same series: YD8324-3 Inkjet Printer, YD3200-X5 Inkjet Printer, YD7212-3 Inkjet Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | Can one machine really run three ink types? | The platform supports eco-solvent, sublimation and UV ink — confirm with us which configuration is shipped for your order: **待你确认具体配置口径**. |
| 2 | What power supply is required? | 1,900 W for the printer plus 2,000 W for the heater at AC 220 V, 50/60 Hz. |
| 3 | Which RIP software is supported? | Maintop as standard; Photoprint optional. |
