Information

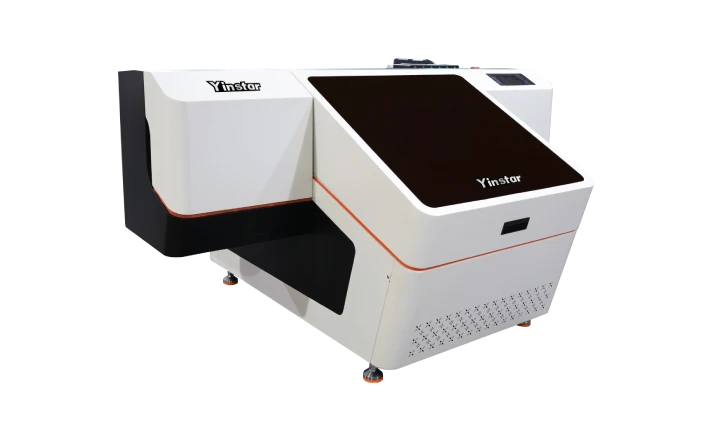

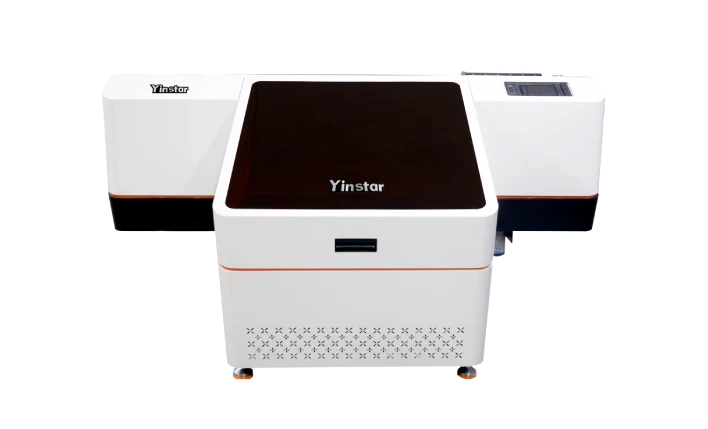

A high-precision desktop UV flatbed printer designed for small to medium-sized businesses and personalized customization services, combining dual Epson printhead performance with versatile material compatibility.
Main Parameters
| Specification | Value |
| Model | YD6042 |
| Print Head | 2 head Epson i1600-U1 |
| Camera | Optional |
| Printing Material | Width ≤600X420(mm) Thickness ≤180(mm) Metal, leather, wood, plastic, glass, ceramic, etc Flexible media: wallpaper, reflective film, canvas, carpet, leather, paper, etc. |
| Machine Size | 163*136*88cm |
| Power | 1200W |
| Weight | 250KG |
| Camera Resolution | 300dpi |
| Ink | CMYK+W+V |
| RIP Software | Flexiprint UV / Riip / Maintop RIP 6.1 |
| UV Curing System | 8-Segment Controlled Air-Cooled UV Lamp |
Top Features
Selling Points

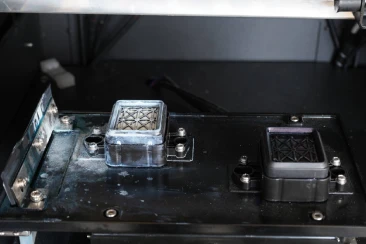

Equipped with silent high-precision HIWIN guide rails, a sliding control panel, suction printing platform, continuous ink supply system, and advanced capping station; features an 8-segment controlled air-cooled UV curing system, with optional visual positioning camera support and compatibility with multiple industry-standard RIP software.
Applications
Printing on metal, leather, wood, plastic, glass, ceramic, wallpaper, reflective film, canvas, carpet, and paper; ideal for personalized gifts, promotional items, small signage, and custom commercial product printing.
