Information

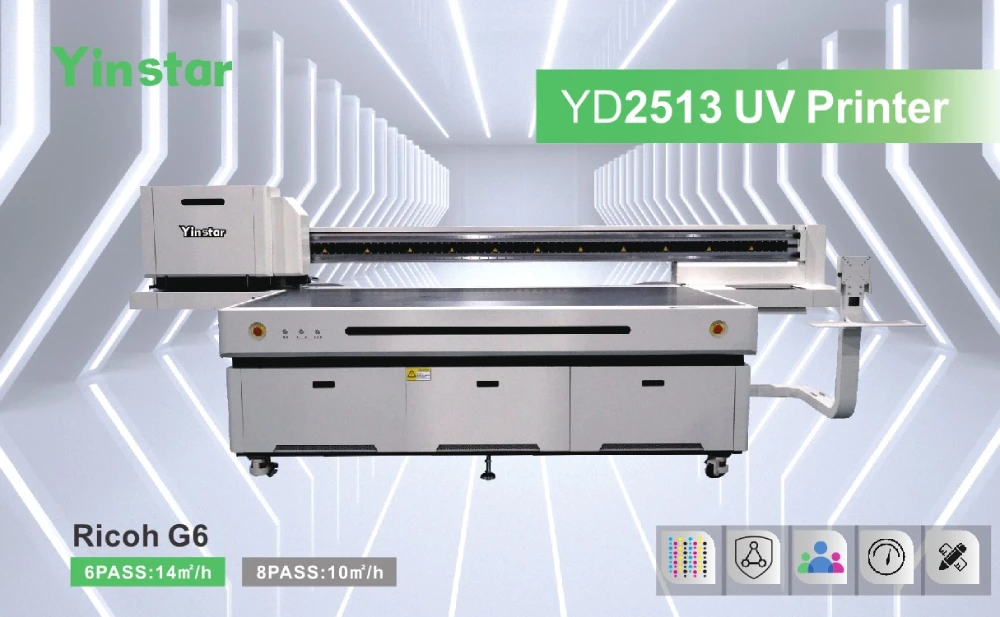

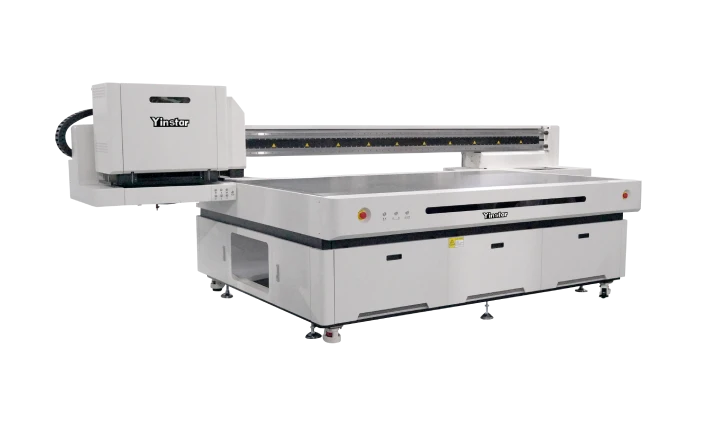

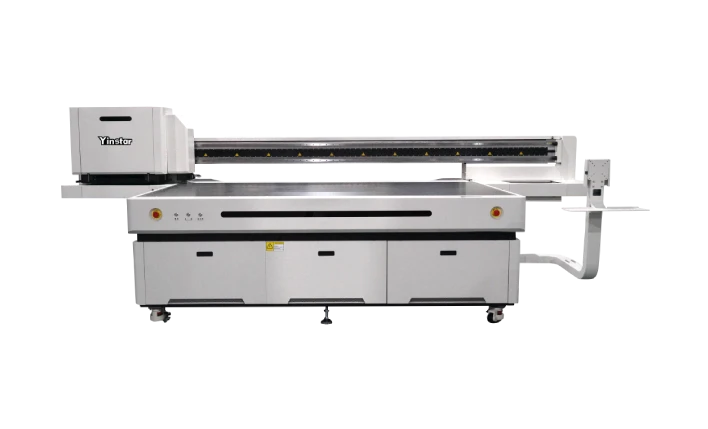

The YD2513 UV is the large-format machine of the range: a 2450 × 1300 mm printing area with a 150mm printing height, driven by 4 to 8 Ricoh G6 printheads at 14 m²/h in 6-pass and 10 m²/h in 8-pass. At 2,050kg on a 453 × 217 × 160 cm frame, it is specified for industrial production.

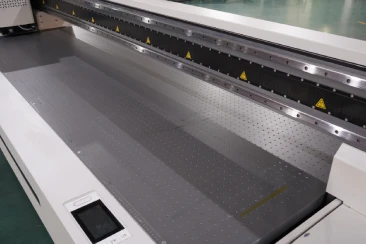

The bed uses five-zone air suction to hold rigid media flat, and an optional 1200 dpi vision system covers pre-printed or uneven substrates. Curing is via a UV water chiller.
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YD2513 UV |
| Printhead | 4–8 pcs Ricoh G6 head |
| Print speed | 6-pass: 14 m²/h ／ 8-pass: 10 m²/h |
| Printing size | 2450 × 1300 mm |
| Printing height | 150 mm |
| Camera | 1200 dpi |
| Max camera scanning size | 2400 × 1300 mm |
| Ink supply | Large tank; white ink with stirring motor; damper heater system in carriage station |
| Printing material | Phone case, leather, acrylic, glass, metal, PVC, PE, wood and similar |
| Cooling system | UV curing water chiller |
| Image format | TIFF / BMP / PDF / EPS / JPEG |
| RIP software | Flexi / RIIN / Maintop |

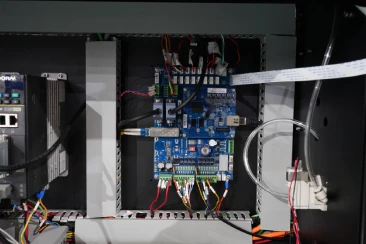

| Control board | Hoson |
| Power | 220 V, 50–60 Hz; 7,000 W |
| Machine size | 453 × 217 × 160 cm |
| Packing size | 499 × 230 × 185 cm |
| Weight | 2,050 kg |
Features
Selling Points

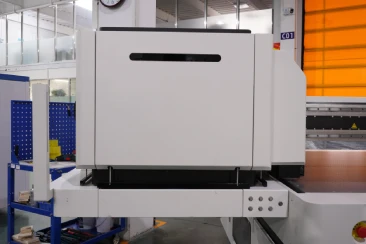

Equipped with magnetic levitation motion system, white ink circulation system, 5-zone vacuum control, advanced anti-collision safety, and German IGUS drag chain; features water-cooled UV LED curing, large-capacity ink supply, and supports high-precision color management for consistent, high-quality output.
Application Fields
- Large rigid panel decoration — doors, panels and architectural surfaces printed directly.
- High-volume phone case and gift production — multi-up nesting on a 2450 × 1300 mm bed.
- Industrial product marking — metal, glass and ceramic components.
Compare with other models in the same series: Cylindrical UV Printer, Yinstar YD1313 UV Flatbed Printer, Yinstar Visual Positioning 9060 UV Printer, YD3200-4 UV Roll-to-Roll Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | How many printheads can be fitted? | 4 to 8 Ricoh G6 heads, scaled to the throughput you need. |
| 2 | What is the maximum print height? | 150 mm. |
| 3 | What power supply is required? | 7,000 W at 220 V, 50–60 Hz. |
