Information

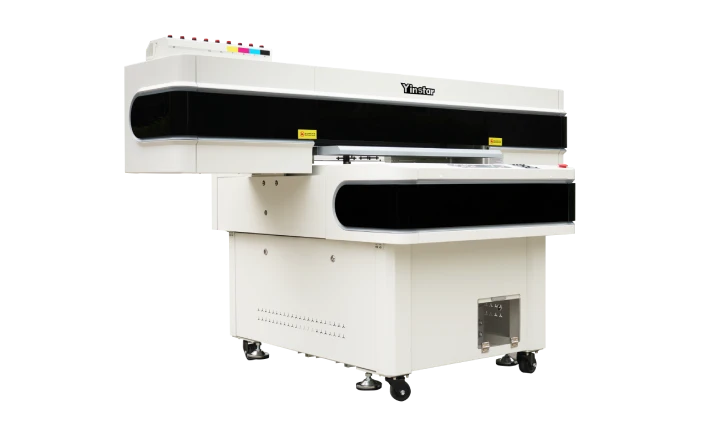

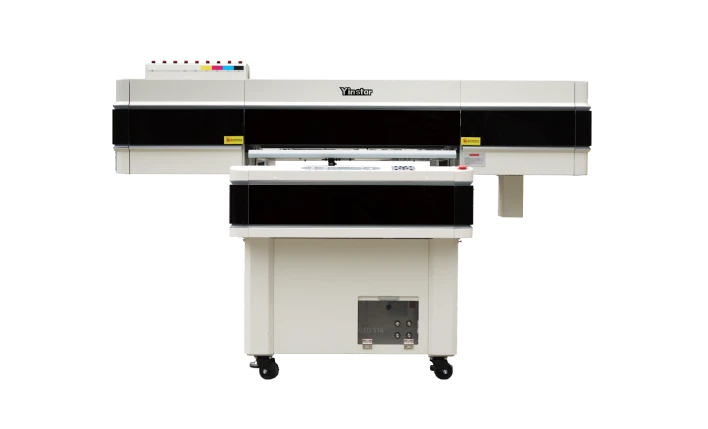

The YD9060-3(Pro) is a 900 × 600 mm class UV flatbed printer with four Epson i3200-U1 printheads and a 29cm maximum print height — the tallest in the range, specified for printing on thick objects rather than flat sheet alone. Output is 6.3 m²/h in 6-pass and 4.6 m²/h in 8-pass.
Resolution reaches 3200 dpi. The machine runs a high-precision six-colour set — CMYK + White + Varnish, or Glue + CMYK + White + Varnish — cured by three LED lamps on a water chiller.
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YD9060-3(Pro) |
| Printhead | 4 × Epson i3200-U1 |
| Print speed | 6-pass: 6.3 m²/h ／ 8-pass: 4.6 m²/h |
| Camera resolution | Max 3200 dpi |
| Printing area | Width ≤ 90 cm (35.4 in) |
| Printing height | 29 cm (11.4 in) |
| Suction platform | Equipped |
| Ink | CMYK + W + Varnish ／ Glue + CMYK + W + Varnish |
| UV curing system | 3 LED lamp water chiller |
| Printing material | Metal, leather, wood, plastic, glass, ceramic and similar |
| RIP software | Photoprint |
| Control board | Hoson / Sunyung |
| Power | 2,500 W |
| Machine size | 216 × 140 × 145 cm |
| Packing size | 226 × 152 × 123 cm |
| Weight | 498.5 kg |
Features
Selling Points

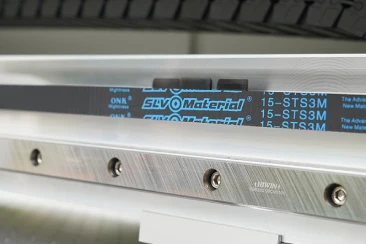

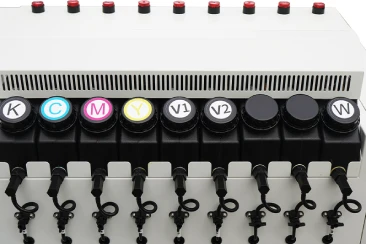

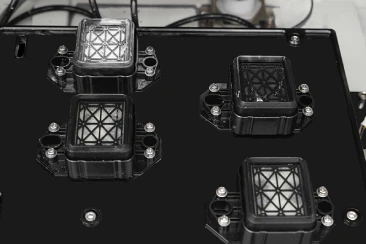

Equipped with silent high-precision HIWIN guide rails, anti-collision protection, UV water cooling system, continuous ink supply system, advanced capping station, and a suction platform; supports dual ink configurations (CMYK+W+Varnish or Glue+CMYK+W+Varnish) and Photoprint RIP software for flexible workflow.
Application Fields
- Thick-object printing — boxes, trays, components and formed parts up to 29 cm tall.
- Mixed rigid and flexible media — one bed for panels and sheet stock.
- Industrial and promotional product decoration — metal, glass, ceramic and wood.
Compare with other models in the same series: Cylindrical UV Printer, Yinstar YD1313 UV Flatbed Printer, Yinstar YD2513 UV Flatbed Printer, YD2000 UV Roll-to-Roll Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What is the maximum object height it can print? | 29 cm (11.4 in). |
| 2 | Can it print glue and varnish as well as colour? | Yes — the ink configuration is CMYK + White + Varnish, or Glue + CMYK + White + Varnish. |
| 3 | What is the maximum resolution? | 3200 dpi. |
