Information

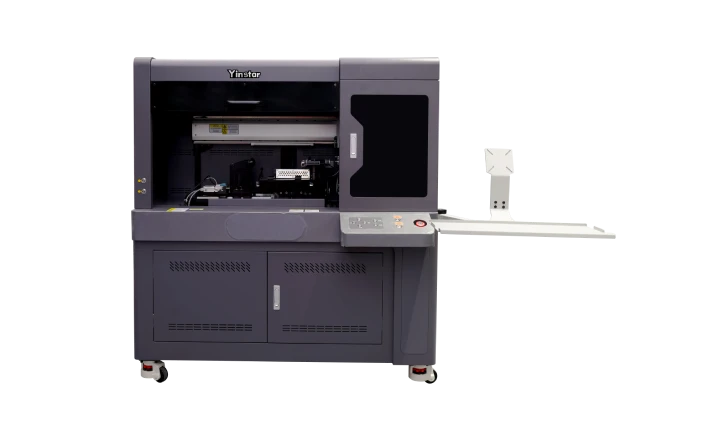

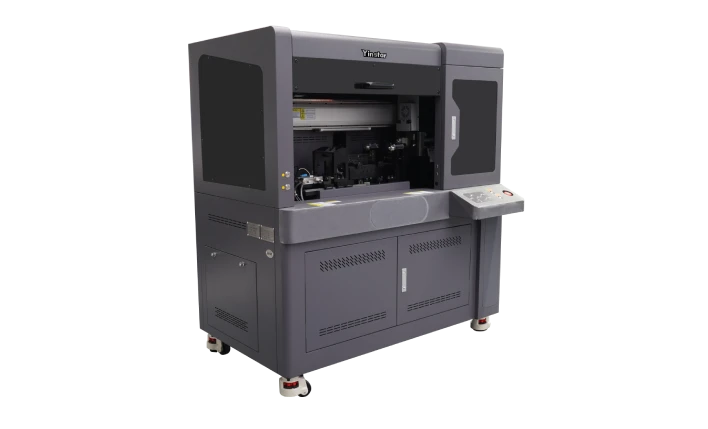

The YD A3C is a purpose-built cylindrical UV printer: a single Epson i3200-U1 HD printhead printing CMYK + White + Varnish onto cylinders from 45 to 100 mm in diameter and 80 to 280 mm in length, at 30 seconds to 3 minutes per piece.
A precision laser scanning system models the object before printing, and a laser collision avoidance system with a metal-shell printhead guard protects the head. It handles taper up to 5° with multi-specification fixing clamps.
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YD A3C |
| Printhead | 1 × Epson i3200-U1 HD |
| Print speed | 30 s – 3 min per piece |
| Printable diameter range | 45–100 mm |
| Printable length range | 80–280 mm |
| Printing height difference | 2–8 mm |
| Supported taper | ≤ 5° |
| Camera resolution | 720 × 1200 dpi / 720 × 1800 dpi |
| Ink / ink type | CMYK + W + V — UV ink for cylindrical printing |
| File format | TIFF, JPEG, Postscript, EPS, PDF |
| RIP software | RIIN |
| Control board | Hoson |
| Power | 650 W |
| Machine size | 90 × 58 × 63 cm |
| Packing size | 101 × 80 × 79 cm |
| Weight | 95 kg / 125 kg |

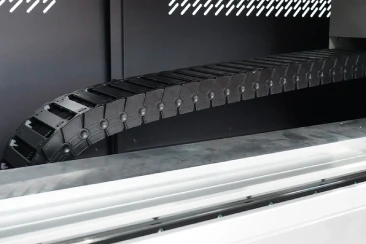

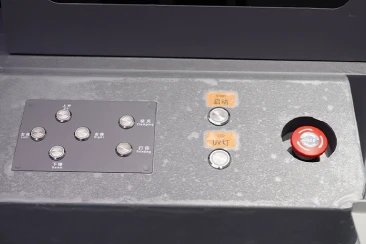

Details
Selling Points

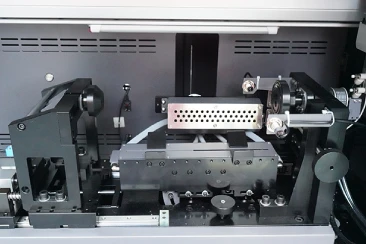

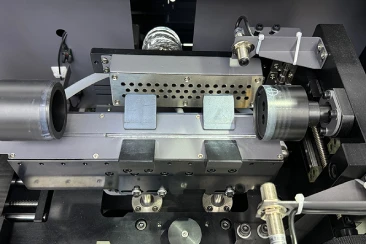

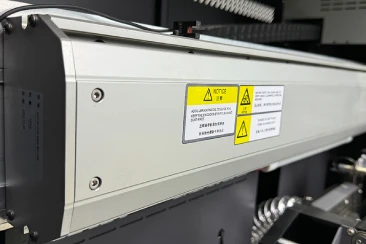

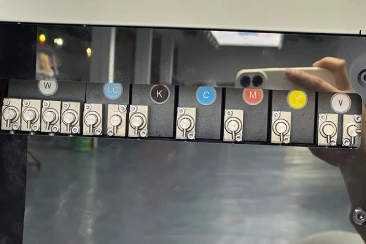

Equipped with silent high-precision HIWIN guide rails, anti-collision device, LED water-cooled UV curing system, continuous ink supply and stable rotary device.
Application Fields
- Beverage and cosmetic container decoration — bottles, cans and tubes.
- Promotional drinkware — cups, mugs and tumblers.
- Industrial cylindrical components — tapered parts within the 5° tolerance.
Compare with other models in the same series: Yinstar YD1313 UV Flatbed Printer, Yinstar YD2513 UV Flatbed Printer, Yinstar YD1413 UV Flatbed Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What diameters can it print? | 45–100 mm diameter, 80–280 mm length. |
| 2 | Can it print tapered objects? | Yes — taper up to 5° is supported using multi-specification fixing clamps. |
| 3 | What is the printing speed? | 30 seconds to 3 minutes per piece, depending on size and settings. |
