Information

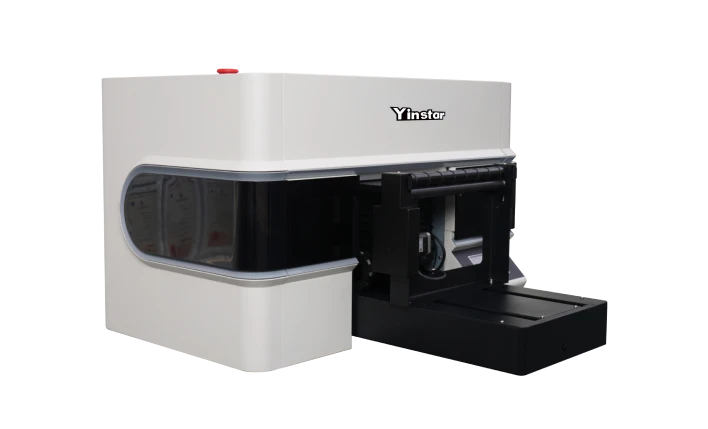

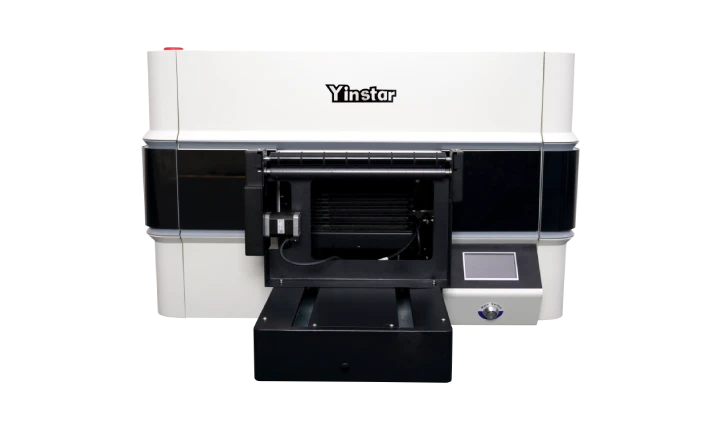

The YDA3 UV is a desktop-format flatbed UV printer with a single Epson i3200-U1 (HD) or DX7 printhead, printing a 300 × 470 mm area to a thickness of 90mm at 3 m²/h in 4-pass.
It is specified as a multi-function unit: an angled printhead for productivity, an optional UV DTF assembly, a rotary device for bottles and mugs, and vision positioning — all on an 86 × 98 × 57 cm frame weighing 120kg.
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YDA3 UV |
| Printhead | 1 × Epson i3200-U1 (HD) / DX7 |
| Print speed | 4-pass: 3 m²/h ／ 6-pass: 1.7 m²/h ／ 8-pass: 1.3 m²/h |
| Printing area | Width ≤ 300 × 470 mm |
| Printing height | ≤ 90 mm |
| Camera resolution | 300 dpi |

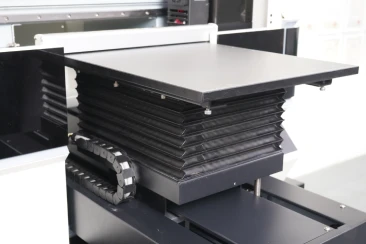

| Suction platform | Equipped |
| Ink | CMYK + W + V |

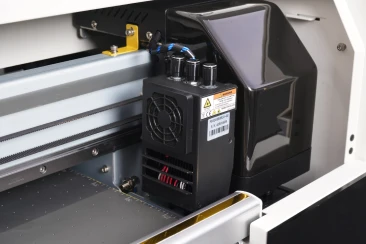

| UV curing system | Air-cooled UV curing lamp |
| Printing material | Metal, leather, wood, plastic, glass, ceramic; flexible media including wallpaper, reflective film, canvas, carpet, leather and paper |
| RIP software | Photoprint |
| Control board | Hoson |
| Power | 400 W |
| Machine size | 86 × 98 × 57 cm |
| Packing size | 108 × 110 × 73 cm |
| Weight | 120 kg |
Top Features
Selling Points
Equipped with HIWIN silent linear guides, intelligent touch screen, white ink automatic circulation, low-ink alarm, air-cooled UV curing and visual positioning system; supports ICC color management and user-adjustable curves and density.
Applications
- Small-batch customisation — phone cases, gifts, promotional items.
- Bottle and mug printing — cylindrical products via the rotary device.
- Desktop UV DTF production — crystal labels via the optional assembly.
Compare with other models in the same series: Yinstar YD1313 UV Flatbed Printer, Yinstar YD2513 UV Flatbed Printer, Yinstar YD1413 UV Flatbed Printer, YD A3R Desktop UV DTF Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | Can it print on bottles? | Yes — a rotary device for bottles and mugs is available, and vision positioning supports cylindrical printing. |
| 2 | Which substrates does it handle? | Rigid: metal, leather, wood, plastic, glass, ceramic. Flexible: wallpaper, reflective film, canvas, carpet, leather, paper. |
| 3 | What is the maximum print height? | 90 mm. |
