Information

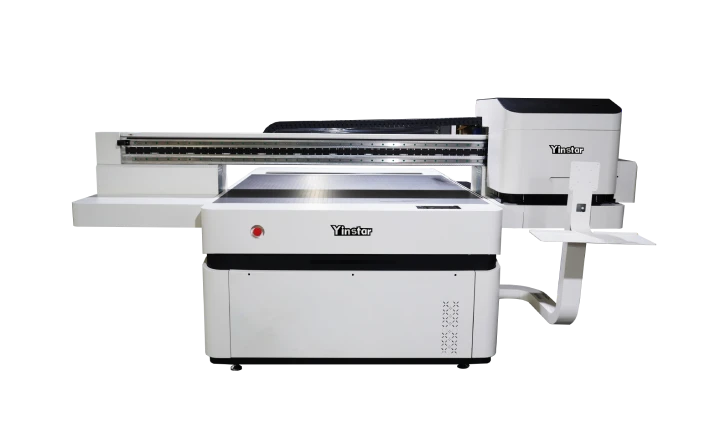

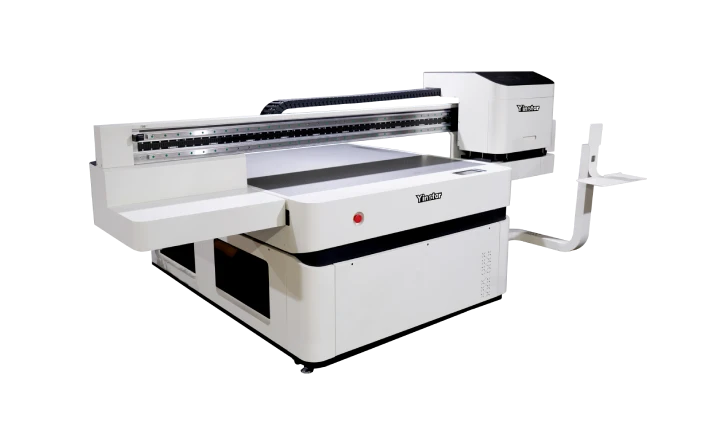

The YD1413 UV is a 1400 × 1300 mm flatbed printer with a 150mm printing height and four Epson i3200-U1 printheads, rated at 8.5 m²/h in 6-pass and 6.5 m²/h in 8-pass. An optional 1200 dpi vision system integrates scanning, printing and RIP in one workflow.
Motion is handled by THK double-row guide rails with a linear motor and magnetic grid reading, which is what holds registration on a bed this size. Curing is by a high-power water-cooled UV lamp; the 1000kg frame measures 284 × 207 × 150 cm.
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YD1413 UV |
| Printhead | 4 × Epson i3200-U1 |
| Print speed | 6-pass: 8.5 m²/h ／ 8-pass: 6.5 m²/h |
| Printing size | 1400 × 1300 mm |
| Printing height | 150 mm |
| Camera resolution | 1200 dpi |
| Max camera scanning size | 1400 × 1300 mm |
| Ink supply | Large tank; white ink with stirring motor; damper heater system in carriage station |
| Printing material | Phone case, leather, acrylic, glass, metal, PVC, PE, wood and similar rigid substrates |
| Cooling | High-power water-cooled UV lamp |
| Image format | TIFF / BMP / PDF / EPS / JPEG |
| RIP software | Photoprint |
| Control board | Hoson |
| Operating environment | 20–30 °C, humidity 40–60% |
| Power | 220 V, 50–60 Hz; 6,800 W |
| Machine size | 284 × 207 × 150 cm |
| Packing size | 296 × 226 × 170 cm |
| Weight | 1,000 kg |
Features
Selling Points

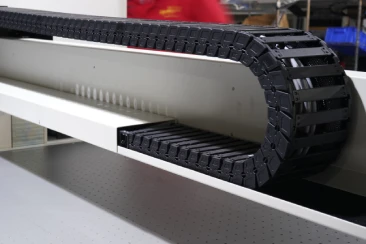

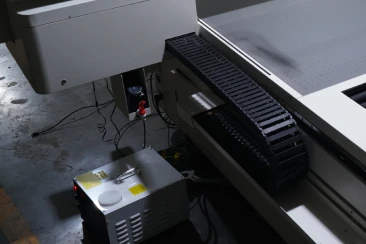

Equipped with independent solenoid valve secondary ink tank control, anti-collision protection, color separation ink pressure and heating system, Japanese THK silent guide rails, and German IGUS drag chain; features a high-power water-cooled UV lamp, large-capacity ink supply with white ink stirring motor and damper heater, and supports multiple image formats.
Application Fields
- Phone case and small-format customisation — one of the highest-mix, highest-margin UV applications.
- Promotional and corporate gifts — acrylic, leather, metal and PVC items.
- Industrial product decoration — rigid panels and components printed directly, with cylindrical media supported.
Compare with other models in the same series: Cylindrical UV Printer, Yinstar YD1313 UV Flatbed Printer, Yinstar Visual Positioning 9060 UV Printer, YD3200-4 UV Roll-to-Roll Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | Which materials can it print? | Phone case, leather, acrylic, glass, metal, PVC, PE, wood and similar. |
| 2 | What power supply is required? | 6,800 W at 220 V, 50–60 Hz. |
| 3 | Does it need a vision system? | The 1200 dpi vision system is optional — it integrates scanning, printing and RIP for pre-printed or uneven substrates. |
