Information

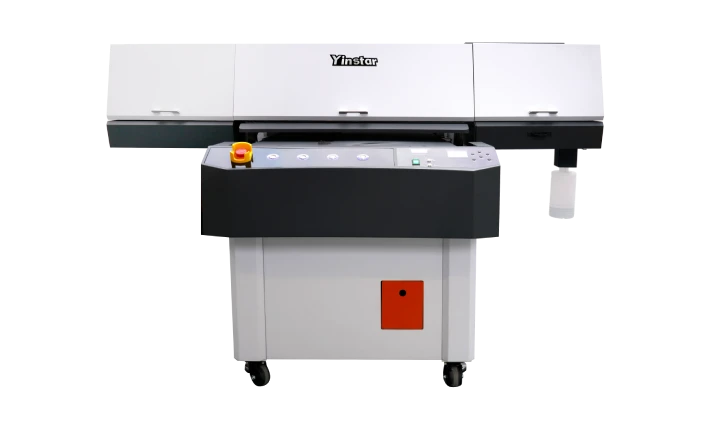

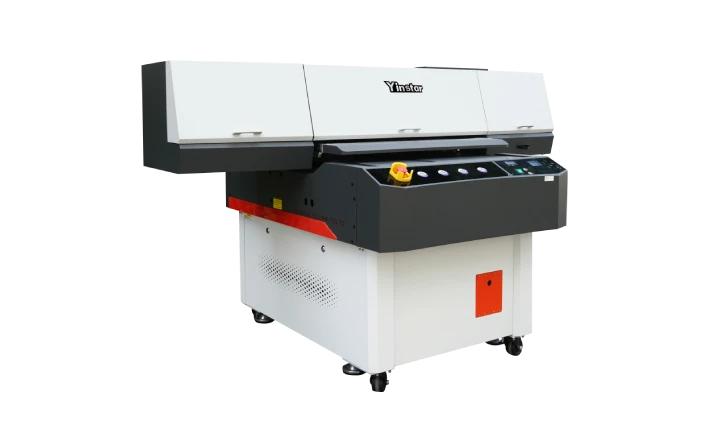

A high-precision industrial-grade UV flatbed printer equipped with visual positioning technology, designed for fast, accurate and repeatable production of customized rigid and flexible materials, ideal for small to medium batch orders.
Main Parameters
| Model | Vision positioning UV printer |
| Print Head | 3 head Epson i3200-U1 |
| Printing Material | Width: ≤900(mm) Thickness: ≤150(mm) Metal, leather, wood, plastic, glass, Ceramic etc |
| Printing Resolution | Max 3200 dpi |
| Ink | UV ink |
| UV Curing System | 3 LED lamp water chiller |
| Suction Platform | Equipped |
| Rip Software | Photoprint |
| Power | 2000W |
| Weight | 445KG |
| Packing Size | 220*153*100cm |
Features

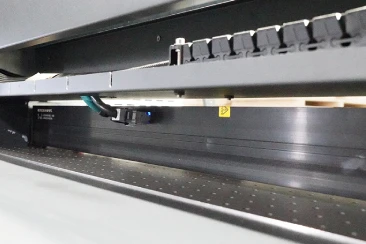

Silent high-precision HIWIN guide rail
Anti-collision device

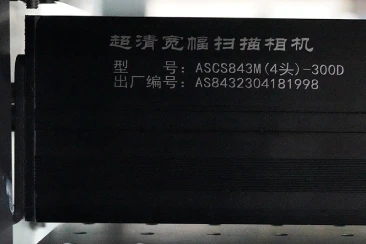

Visual positioning technology

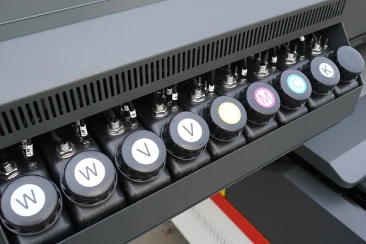

Continuous ink supply system

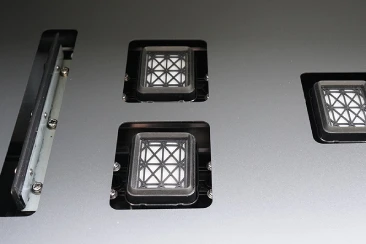

Advanced capping station
Selling Points
Built with silent high-precision HIWIN guide rails, anti-collision protection, visual positioning technology, continuous ink supply system, advanced capping station, water-cooled LED UV curing system, and a powerful suction platform, supporting Photoprint RIP software for seamless workflow integration.
Application Fields
Printing on metal, leather, wood, plastic, glass, ceramic, and more; ideal for personalized gifts, promotional items, small signage, and custom commercial printing requiring precise alignment.
