Information

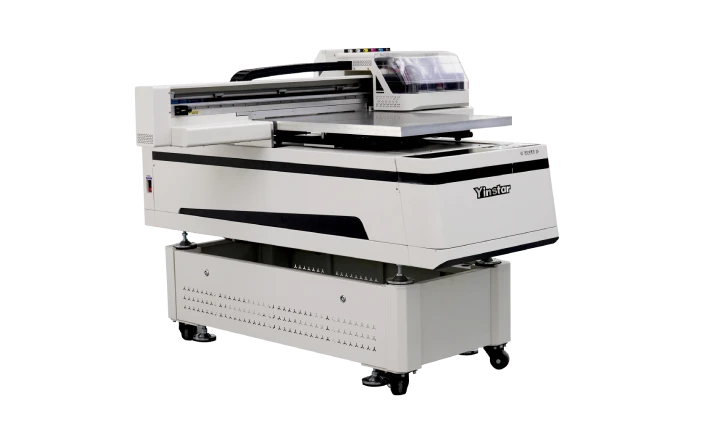

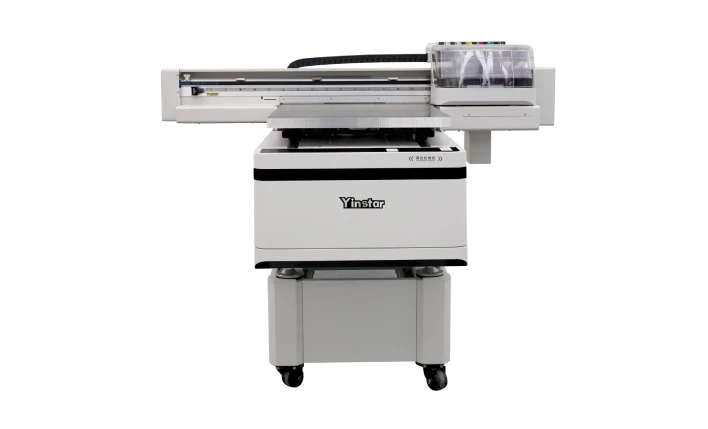

The YD6090(A) UV is a 600 × 900 mm flatbed UV printer with three Epson i3200-U1 printheads, rated at 7.5 m²/h in 6-pass and 5 m²/h in 8-pass. It is a three-in-one platform: it prints flat rigid media, runs UV DTF film roll-to-roll, and prints cylindrical objects.

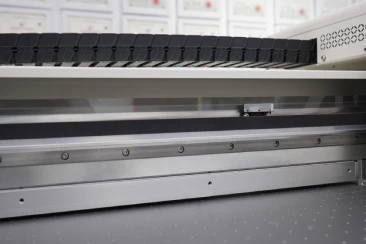

Material thickness goes to 180mm, and a 13-stage adjustable air-cooled UV lamp covers the curing window. A visual positioning system with optional vision scanning supports one-key intelligent switching between print schemes.
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YD6090(A) UV |
| Printhead | 3 × Epson i3200-U1 |
| Print speed | 6-pass: 7.5 m²/h ／ 8-pass: 5 m²/h |
| Printing area | Width ≤ 600 × 900 mm |
| Printing height | ≤ 180 mm |
| Camera resolution | 300 dpi |

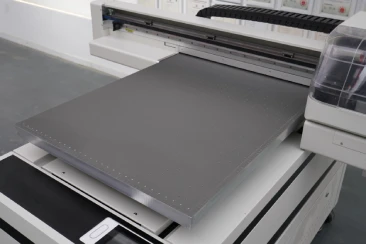

| Suction platform | Equipped |

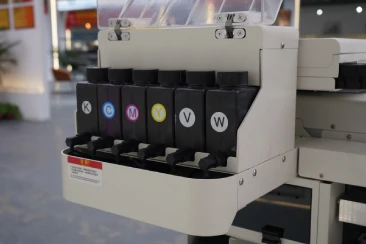

| Ink | CMYK + W + V |
| UV curing system | 13-stage adjustable control air-cooled UV lamp |
| Printing material | Metal, leather, wood, plastic, glass, ceramic and similar |
| RIP software | Flexi / RIIN / Maintop |
| Control board | Hoson |
| Power | 1,200 W |
| Machine size | 171 × 164 × 81 cm |
| Packing size | 179 × 175 × 103 cm |
| Weight | 270 kg |
Top Features
Selling Points
13-segment individually controlled air-cooled UV curing, positive pressure ink supply, ICC color management, user-adjustable curves and density, supports cylindrical and roll crystal label printing.
Applications
- Signage and promotional printing on rigid and flexible media from one machine.
- UV DTF crystal label production via the roll-to-roll system.
- Bottle and cylindrical object printing using the built-in cylindrical mode.
Compare with other models in the same series: Cylindrical UV Printer, Yinstar YD1313 UV Flatbed Printer, Yinstar YD2513 UV Flatbed Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | Can it print on bottles and cylinders? | Yes — cylindrical printing mode is built in alongside flatbed and UV DTF roll-to-roll. |
| 2 | What is the maximum material thickness? | 180 mm. |
| 3 | What power supply is required? | 1,200 W at 220 V, 50–60 Hz. |
