Information

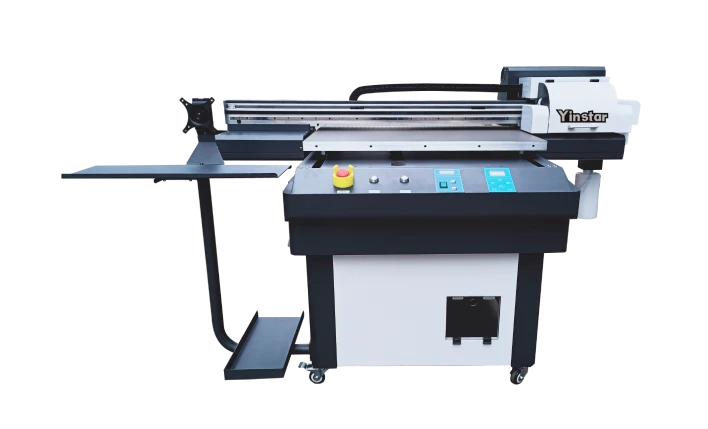

A high-performance 9060-format UV flatbed printer designed for small to medium production needs, combining reliable Epson printhead technology with industrial-grade build quality for versatile, high-quality printing on a wide range of rigid materials.
Main Parameters
| Model | YD9060(F1080-A1) |
| Print head | 3 head Epson F1080-A1/TX 800 |
| Printing material | Width ≤900(mm); Thickness ≤150(mm); Metal,leather,wood,plastic,glass,Ceramic etc |
| Printing resolution | Max 2440 dpi |
| Ink | UV ink |
| UV curing system | LED lamp water chiller |
| Suction platform | Equipped |
| Rip software | Photoprint |
| Power | 1200W |
| Weight | 350KG |
| Packing size | 206*138*90cm |
Browse the full UV flatbed printer series for more models and configurations.
Top Features
Selling Points

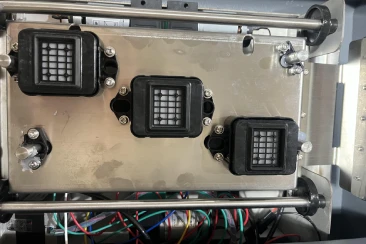

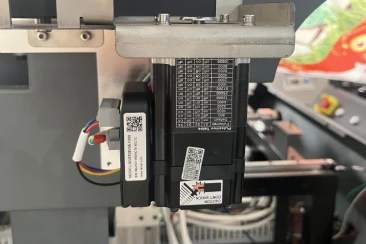

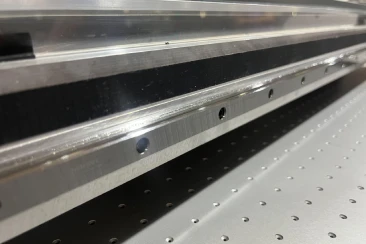

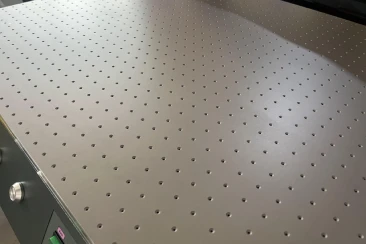

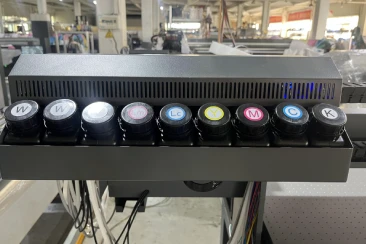

Equipped with silent high-precision HIWIN guide rails, high-precision Leadshine servo motors, a powerful vacuum aluminum platform, large-capacity ink supply system, and three-head ink stack; features an LED lamp water-cooled UV curing system and supports Photoprint RIP software for stable workflow.
Applications
Printing on metal, leather, wood, plastic, glass, ceramic, and more; ideal for personalized gifts, promotional products, small signage, and custom commercial printing projects.
