Information

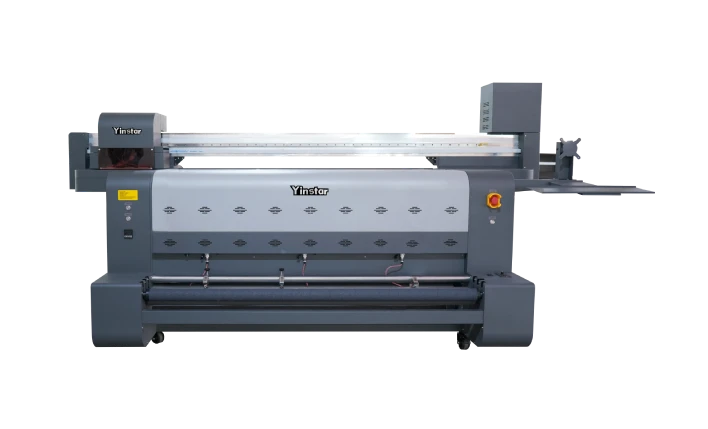

The YD1600-4 is a 1600mm direct-to-fabric flag printer with four Epson i3200-A1 printheads, rated at 120 m²/h in 2-pass and 75 m²/h in 4-pass. It combines printing, drying and cutting in one machine, with a semi-automatic hotmelt cutting system on board.
Media handling covers warp-knitted fabric, satin, mesh and display fabrics. An X-axis AC servo motor drives the carriage on HIWIN high-speed silent linear rails.
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | YD1600-4 |
| Printhead | 4 × Epson i3200-A1 |
| Print speed | 2-pass: 120 m²/h ／ 4-pass: 75 m²/h |
| Printing width | 1600 mm |
| Ink type | Sublimation ink |
| Ink | C / M / Y / K |
| Control board | Hoson |
| Voltage | AC 220 V, 50–60 Hz |
| RIP software | Maintop 6.1 |
| Printer power | 6,500 W |
| Machine size | 341 × 118 × 160 cm |
| Packing size | 345 × 141 × 158 cm |
| Weight | 680 kg |
Features

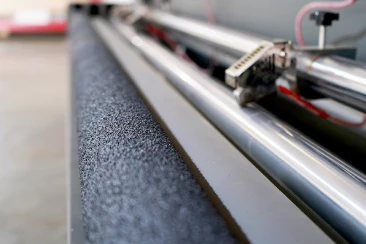

Friction roller
High precision machinery ink station
HIWIN High-speed silent linear guide
Large capacity ink supply system

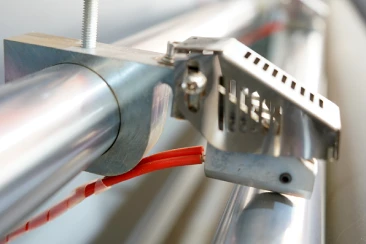

Semi-automatic hot melt cutting system

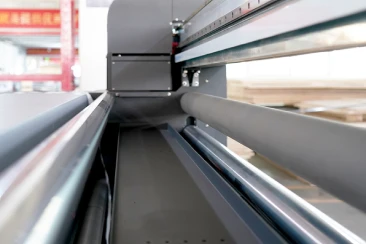

Waste ink tank lifting system
Selling Points
Four-head configuration for ultra-high-speed production; printhead anti-collision device, silent guide rails, and motorized adjustment for stable, worry-free operation.
Application Fields
- Flag and banner producers — rush orders where same-day dispatch depends on in-line cutting.
- Trade show and event graphics — display fabrics and mesh banners.
- Textile printers adding direct-to-fabric capability — warp-knitted and satin work alongside transfer printing.
Compare with other models in the same series: Yinstar YD1300 Sublimation Flag Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | Does it cut as well as print? | Yes — a semi-automatic hotmelt cutting system is built in, so print, dry and cut happen in one machine. |
| 2 | Which fabrics can it print? | Warp-knitted fabric, satin, mesh and display fabrics. |
| 3 | What power supply is required? | 6,500 W at AC 220 V, 50–60 Hz. |
