Information
The YD2200-4 widens the platform to 2200mm with the same four Epson i3200-A1 printheads, running 130 m²/h in 2-pass and 80 m²/h in 4-pass. Printer power rises to 11,000W and machine weight to 980kg.

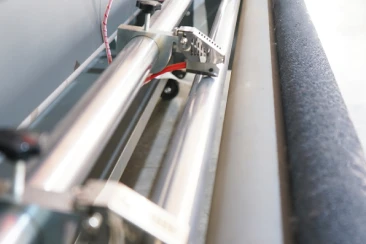

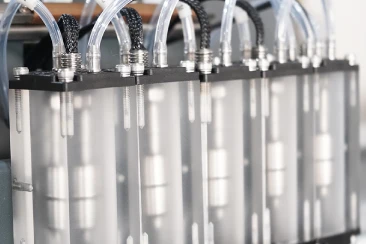

It is specified for industrial direct-to-fabric flag production, with automatic liquid-level controlled buffer ink supply, an automatic tension feeding and collecting system, and the same semi-automatic hotmelt cutting system as the rest of the flag range.
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | YD2200-4 |
| Printhead | 4 × Epson i3200-A1 |
| Print speed | 2-pass: 130 m²/h ／ 4-pass: 80 m²/h |
| Printing width | 2200 mm |
| Ink type | Sublimation ink |
| Ink | C / M / Y / K |
| Control board | Hoson |
| Voltage | AC 220 V, 50–60 Hz |
| RIP software | Maintop 6.1 |
| Printer power | 11,000 W |
| Machine size | 397 × 116 × 142 cm |
| Packing size | 420 × 140 × 172 cm |
| Weight | 980 kg |
Features
Selling Points
High-speed 4-head configuration for large-format output; features printhead anti-collision protection, silent guide rails, motorized adjustment, and a 4-head fully automatic ink stack system for stable, continuous operation.
Application Fields
- Industrial flag production — wide-format runs where panel width reduces cutting and sewing labour.
- Large-format display and event graphics.
- Textile printers scaling up from 1600mm — same head platform, wider output.
Compare with other models in the same series: Yinstar YD1300 Sublimation Flag Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What is the difference from the YD1600-4? | Printing width (2200mm vs 1600mm), output (130 vs 120 m²/h at 2-pass), printer power (11,000W vs 6,500W) and machine weight (980kg vs 680kg). Both use four Epson i3200-A1 heads and an in-line hotmelt cutting system. |
| 2 | What power supply is required? | 11,000 W at AC 220 V, 50–60 Hz — a dedicated circuit is essential. |
| 3 | Which fabrics can it print? | Sublimation printing on warp-knitted fabric, satin, mesh and display fabrics. |
