Information
The YD3200-4 is the widest machine in the flag range: 3200mm printing width with four Epson i3200-A1 printheads, rated at 160 m²/h in 2-pass and 90 m²/h in 4-pass. Printer power is 13,000W and the machine weighs 1,650kg on a 499 × 140 × 143 cm frame.
It is built for industrial direct-to-fabric flag work, with automatic tension feeding and collecting, buffer stable-pressure ink supply, and an in-line semi-automatic hotmelt cutter.
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | YD3200-4（Sublimation Flag Printer） |
| Printhead | 4 × Epson i3200-A1 |
| Print speed | 2-pass: 160 m²/h ／ 4-pass: 90 m²/h |
| Printing width | 3200 mm |
| Ink type | Sublimation ink |
| Ink | C / M / Y / K |
| Control board | Hoson |
| Voltage | AC 220 V, 50–60 Hz |
| RIP software | Maintop 6.1 |
| Printer power | 13,000 W |
| Machine size | 499 × 140 × 143 cm |
| Packing size | 516 × 155 × 199 cm |
| Weight | 1,650 kg |
Features
Continuous ink supply system
Master control cylinder

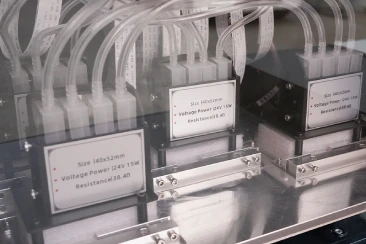

Nozzle heating system
Power input

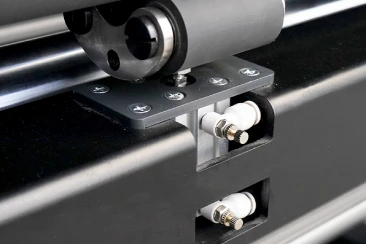

Rubber roller cylinder

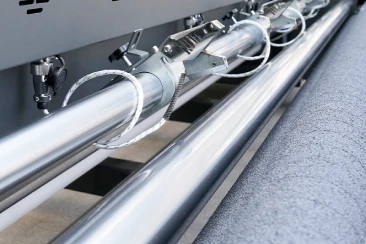

Semi-automatic hot melt cutting system
Waste ink tank lifting system
Selling Points
Ultra-wide 3.2m printing width for large-format applications; features printhead anti-collision system, silent guide rails, motorized adjustment device, and a four-head fully automatic ink stack for reliable, continuous operation.
Application Fields
- Large-scale flag and banner factories — maximum panel width per pass.
- Exhibition and stadium graphics — very large display fabrics.
- Textile producers running wide-format direct-to-fabric lines.
Compare with other models in the same series: Yinstar YD1300 Sublimation Flag Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What power supply is required? | 13,000 W at AC 220 V, 50–60 Hz. This requires a dedicated industrial circuit — confirm capacity with your electrician before ordering. |
| 2 | What floor space and access does installation need? | Machine footprint 499 × 140 × 143 cm at 1,650 kg; crate 516 × 155 × 199 cm. Check door widths and floor loading on the delivery route. |
| 3 | What is the difference from the YD2200-4? | Width (3200mm vs 2200mm), output (160 vs 130 m²/h at 2-pass), power (13,000W vs 11,000W) and weight (1,650kg vs 980kg). |
