Information
The F1904C is a 1900mm dye-sublimation printer with four Epson i3200-A1 printheads, rated at 180 m²/h in 2-pass and 90 m²/h in 4-pass. Ink is supplied from 3.5L bulk bottles plus 220ml secondary cartridges, giving 650kg of machine on a 323 × 113 × 104 cm crate.

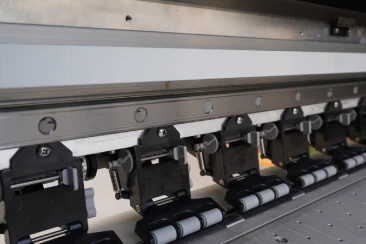

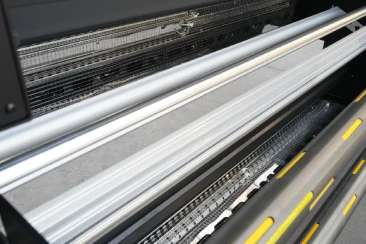

Two features define the machine: a dual drying system, and automatic constant-tension media feeding. Together they address the two failure modes of high-speed sublimation — incomplete drying at speed, and paper wandering on long runs.
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | F1904C |
| Printhead | 4 × Epson i3200-A1 |
| Print speed | 2-pass: 180 m²/h ／ 4-pass: 90 m²/h |
| Print width | 1900 mm |
| Ink type | Dye sublimation ink |
| Colour configuration | C / M / Y / K |
| Ink bottle | 3.5 L × 4 + 220 ml × 4 |
| Control board | Hoson |
| Guide rail | Japan THK high-speed silent linear guide |
| RIP software | Riin / Maintop / Photoprint |
| Printing material | Sublimation paper |
| Power | Machine 0.9 kW + heating 6.76 kW |
| Voltage | 220 V, 50/60 Hz (standard) |
| Package size | 323 × 113 × 104 cm |
| Weight | 650 kg |
Top Features
Selling Points

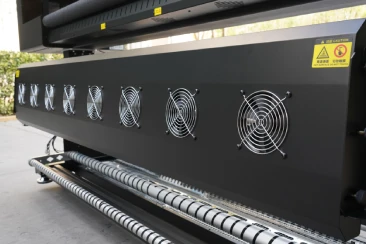

Features an integrated three-part heating system (upper, side, and bottom) to ensure quick drying of sublimation ink at high speeds. It offers a perfect balance of color saturation and superb print quality.
Applications
- Sportswear and team kit production — high-volume polyester printing where output per shift decides the order.
- Home textile and soft furnishing printing — bedding, curtains and cushions at production scale.
- Roll-to-roll transfer printing for decor — where consistent tension matters more than peak speed.
Compare with other models in the same series: 3208 8-Head Sublimation Printer, 2212 12-Head Industrial Sublimation Printer, 3216 16-Head Sublimation Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What power supply is required? | Machine 0.9 kW plus heating 6.76 kW at 220 V, 50/60 Hz. Confirm the total circuit capacity before installation. |
| 2 | Which RIP software is supported? | Riin, Maintop or Photoprint. |
| 3 | What media does it print on? | Sublimation paper. |
