Information

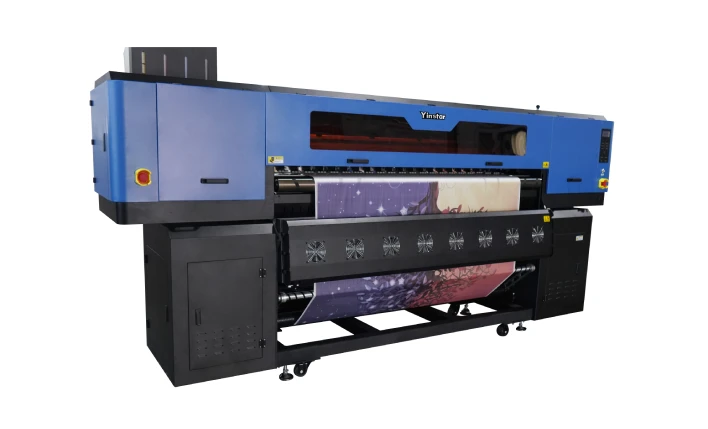

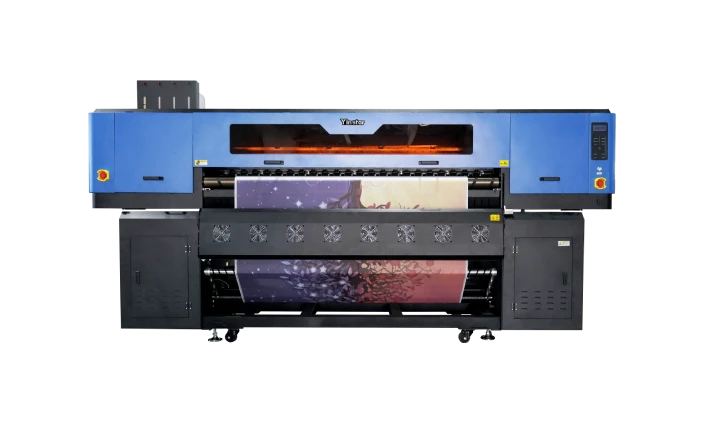

The F1908 is the heavy-duty eight-head machine in the sublimation range: eight Epson i3200-A1 printheads, a 1900mm print width, and 320 m²/h in 1-pass. At 1320kg on a 390 × 136 × 192 cm crate it is built for continuous factory operation rather than intermittent job work.

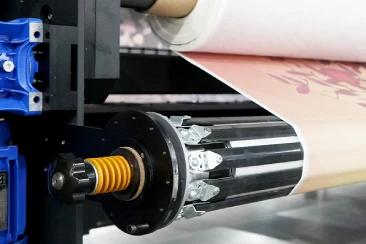

Ink capacity is 4000ml × 4, and the machine takes 350mm-diameter sublimation paper rolls weighing about 90kg. Both front and bottom heating plates are fitted for rapid drying, with a tension dancer arm and angle sensor governing web feeding.
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | F1908 |
| Printhead | 8 × Epson i3200-A1 |
| Print speed | 1-pass: 320 m²/h ／ 2-pass: 160 m²/h |
| Print width | 1900 mm |
| Ink type | Dye sublimation ink |
| Ink | C / M / Y / K |
| Ink tank | 4000 ml × 4 |
| Control board | Hoson |

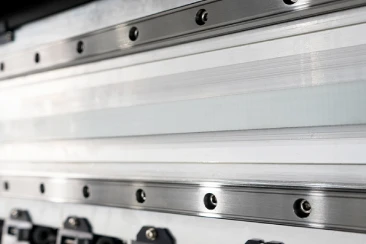

| Guide rail | Japan THK high-speed silent linear guide |
| RIP software | RIIN standard (Maintop optional) |
| Printing material | Sublimation paper（roll diameter 350 mm, weight about 90 kg） |
| Power | Machine 2.8 kW + heating 8.2 kW |
| Voltage | 220 V, 50/60 Hz (standard) |
| Package size | 390 × 136 × 192 cm |
| Weight | 1320 kg |
Top Features
Selling Points
Equipped with a 4000ml large-capacity bulk ink system and damper heating to maintain consistent ink flow in various environments. It provides better color saturation and accuracy compared to entry-level heads.
Applications
- Industrial textile printing factories — continuous shifts where downtime is the main cost.
- Large-format sportswear and apparel print houses — 1-pass throughput for high-volume repeat orders.
- Print service providers running 24-hour production — 4000ml tanks and alarms keep a shift running unattended.
Compare with other models in the same series: 3208 8-Head Sublimation Printer, 2212 12-Head Industrial Sublimation Printer, 3216 16-Head Sublimation Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What paper roll sizes does it accept? | Sublimation paper up to 350 mm roll diameter, around 90 kg per roll. |
| 2 | What power supply is required? | Machine 2.8 kW plus heating 8.2 kW at 220 V, 50/60 Hz. This is a substantial load — confirm your supply capacity before ordering. |
| 3 | Which RIP software is supported? | RIIN as standard; Maintop optional. |
