Information

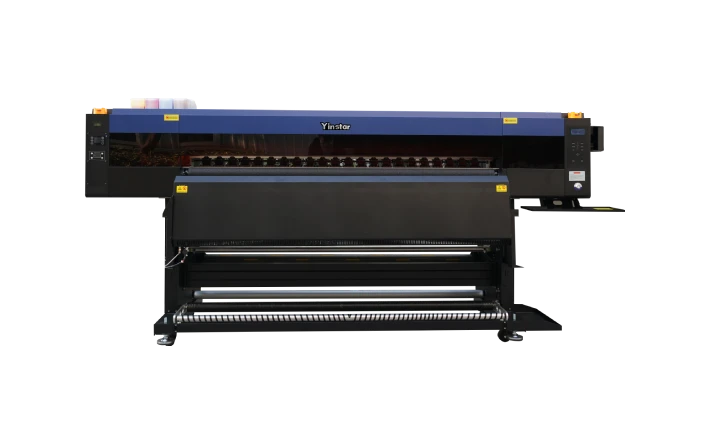

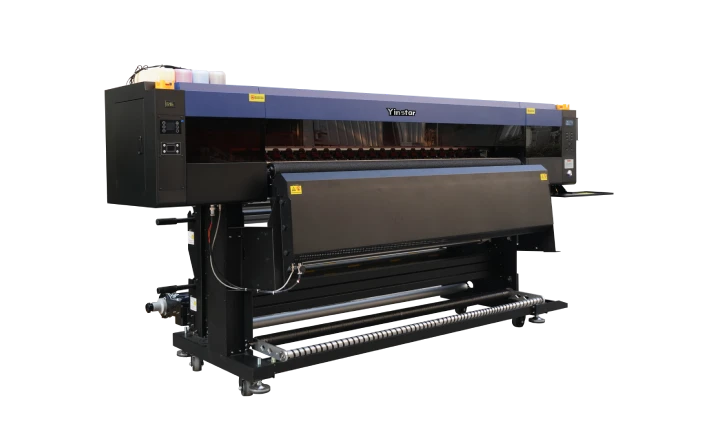

The F1908B runs the same eight Epson i3200-A1 printheads and 320 m²/h 1-pass output as the F1908, but on an AT mainboard with 1820mm print width, and it is designed around deployment logistics: wooden crate split packaging keeps the crate to 323 × 113 × 104 cm and 650kg — half the shipping volume of the F1908.
It also supports offline cleaning and nozzle testing, and one PC can drive multiple printers.
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | F1908B |
| Printhead | 8 × Epson i3200-A1 |
| Print speed | 1-pass: 320 m²/h ／ 2-pass: 160 m²/h |
| Print width | 1820 mm |
| Mainboard | AT Board |
| Ink type | Dye sublimation ink |
| Ink | C / M / Y / K |
| Ink tank | 3500 ml × 4 + 220 ml (secondary ink cartridge) |
| Inkjet technology | On-demand piezo |
| File formats | TIFF, JPEG, Postscript, EPS, PDF |
| RIP software | Maintop / Photoprint |
| Printing material | Sublimation paper（unwind diameter 30 cm, weight about 65 kg） |
| Power | Machine 0.8 kW + heating 5 kW |
| Voltage | 220 V, 50/60 Hz (standard) |
| Package size | 323 × 113 × 104 cm |
| Weight | 650 kg |
Top Features
High-speed silent Paper shortage Energy – efficient dry Inflatable shaft
High precision suction platform
Paper shortage detection function
Inflatable shaft Retractable paper Shaft
Energy-efficient drying setup, low power, high efficiency
Selling Points
Highly cost-effective industrial performance with a simplified maintenance design. It is designed to maximize profit margins by reducing equipment procurement and space costs.
Applications
- Overseas factories importing machinery — split packaging directly reduces freight cost on container shipments.
- Multi-machine print farms — one PC controlling several printers.
- Textile printers wanting 8-head output in a smaller footprint — half the crate volume of the F1908 at the same print speed.
Compare with other models in the same series: 3208 8-Head Sublimation Printer, 2212 12-Head Industrial Sublimation Printer, 3216 16-Head Sublimation Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | How does the F1908B differ from the F1908? | Both run eight Epson i3200-A1 heads at 320 m²/h in 1-pass. The F1908B uses an AT mainboard at 1820mm width, ships in split wooden crates (650kg / 323 × 113 × 104 cm), and supports offline cleaning plus multi-printer control from one PC. The F1908 uses a Hoson board at 1900mm width and ships at 1320kg / 390 × 136 × 192 cm. |
| 2 | What power supply is required? | Machine 0.8 kW plus heating 5 kW at 220 V, 50/60 Hz. |
| 3 | What paper roll sizes does it accept? | Unwind diameter 30 cm, around 65 kg per roll. |
