Information

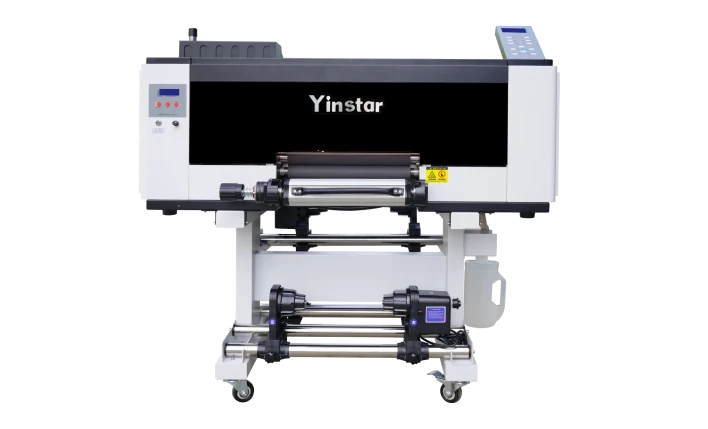

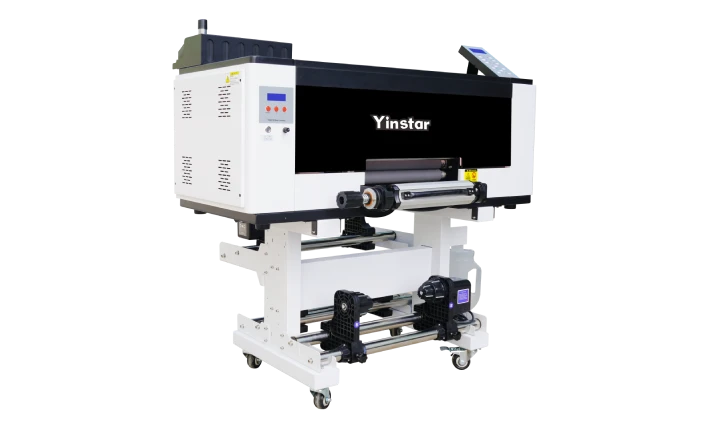

The YD2030-X5 (UV) is an economical A3 UV DTF printer running three Epson F1080-A1 printheads that lay down white, colour and varnish in a single pass. Rated output is 3 m²/h at 6-pass and 2 m²/h at 8-pass across a working width of up to 300mm and material thickness up to 1.5mm.

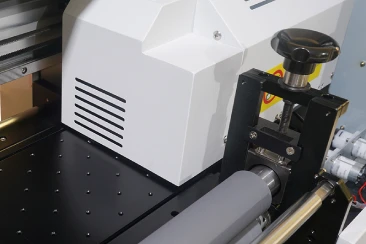

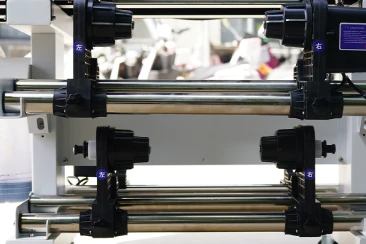

Printing resolution reaches 2400 dpi. Curing is handled by an air-cooled system with two LED UV lamps, and the unit includes a laminating device plus feed and peel stations.
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | YD2030-X5 (UV) |
| Printhead | 3 × Epson F1080-A1 |
| Print speed | 6-pass: 3 m²/h ／ 8-pass: 2 m²/h |
| Printing resolution | Max 2400 dpi |
| Printing material | Soft advertising material, UV DTF film |
| Material width | ≤ 300 mm |
| Material thickness | ≤ 1.5 mm |
| Ink | UV ink |
| Control board | Sunyung |
| RIP software | Photoprint |
| UV curing system | Air cooling system + two LED UV lamps |
| Power | 1,200 W |
| Weight | 105 kg |
| Packing size | 159 × 76 × 70 cm |

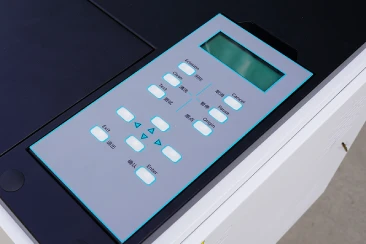

| 备注 | Laminating device; feeding and peeling device; adjustable control panel |
Top Features
Selling Points
Three Epson F1080-A1 printheads lay down white, colour and varnish in a single pass, reaching up to 2400 dpi on UV DTF film and soft advertising media up to 300 mm wide, which makes it a compact and economical entry point for UV DTF transfer production.
Applications
- Crystal label / UV DTF transfer production — decorative labels and hard-surface transfers.
- Small-format promotional goods — short runs on soft advertising material and UV DTF film.
- Shops adding UV DTF alongside textile DTF — a compact A3 unit at a lower entry cost than the 600mm models.
Compare with other models in the same series: YD8060-3 UV DTF Printer, YD8034-X5 UV DTF Printer, YD A3R Desktop UV DTF Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What is the difference between this and the YD2030-X5 textile DTF printer? | This unit is a UV DTF printer using UV ink with three Epson F1080-A1 heads and an LED UV curing system, for UV DTF film and soft advertising material. The textile YD2030-X5 uses pigmentation ink (CMYK + White) with a DF-300 Pro powder shaker. |
| 2 | Up to what material thickness can it print? | Up to 1.5 mm, with a maximum width of 300 mm. |
| 3 | What is the printing resolution? | Max 2400 dpi. |
