Information

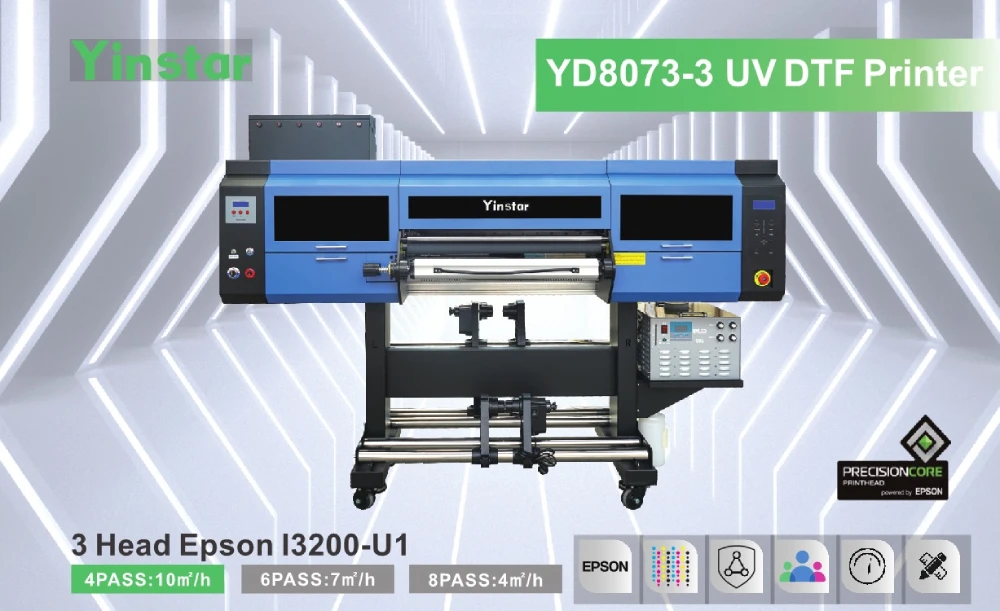

The YD8073-3 (UV) is a 600mm UV DTF printer with three Epson i3200-U1 printheads at 3200 dpi, rated at 10 m²/h in 4-pass, 7 m²/h in 6-pass and 4 m²/h in 8-pass. It is positioned as the throughput option at 600mm width.

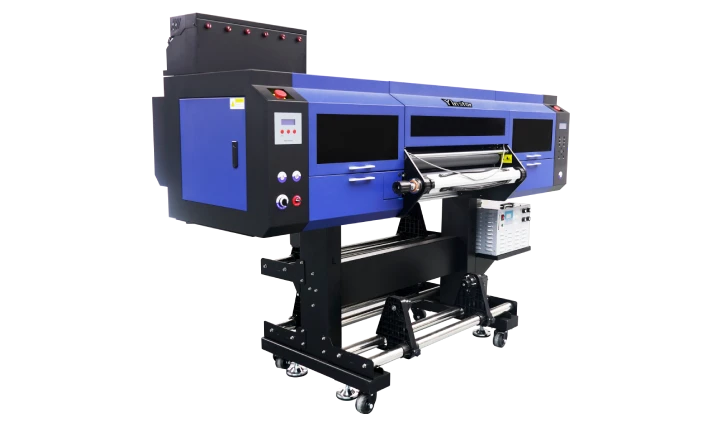

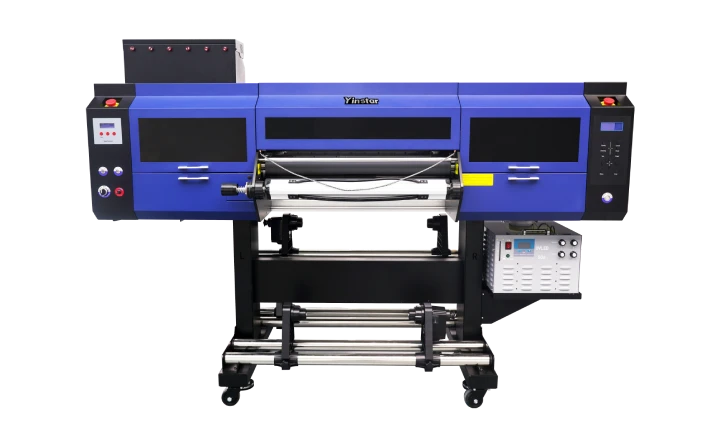

Four UV lamps — two large, two small — provide even curing across the web. An all-aluminium body with a high-torque Y-axis gearbox and dual Leadshine servo motors carries the print platform, and a positive ink supply system feeds the smart white ink circulation with auto-stirring.
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YD8073-3 (UV) |
| Printhead | 3 × Epson i3200-U1 |
| Print speed | 4-pass: 10 m²/h ／ 6-pass: 7 m²/h ／ 8-pass: 4 m²/h |
| Printing resolution | Up to 3200 dpi |
| Printing material | Soft advertising material, UV DTF film |
| Width | ≤ 600 mm |
| Thickness | ≤ 1.5 mm |
| Ink | UV ink (C, M, Y, K + W + V) |
| UV curing system | LED lamp water chiller |
| RIP software | Photoprint |
| Control board | Hoson |
| Power | 2,000 W |
| Packing size | 223 × 112 × 80 cm |
| Weight | 275 kg |
Top Features

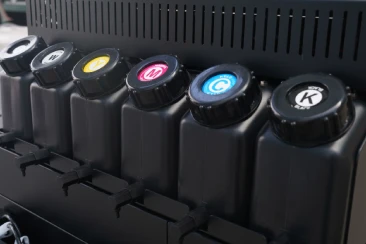

Positive ink supply system
High precision machinery ink station

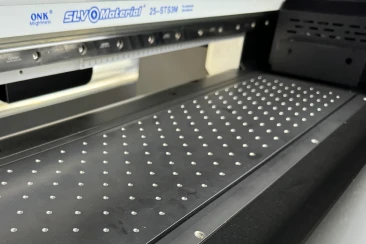

Anti-collision device of print head

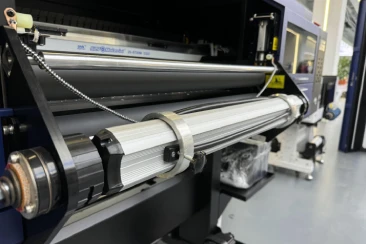

With laminator

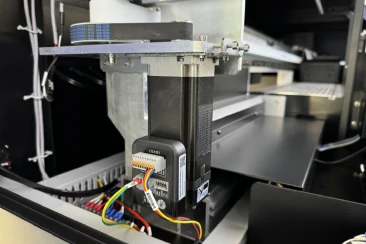

High precision double Leadshine servo motor
Selling Points
Three-Head Efficiency
Dedicated heads for color, white, and varnish/glue allow for one-pass printing with high opacity and glossy finishes.
Integrated Lamination
Built-in small hot laminator combines A and B films automatically.
Stability
Utilizes a professional Hoson board for high-speed, stable data transmission.
Advanced Features
Includes a white ink circulation system to prevent sediment and clogging.
Applications
Hard Surfaces: Glass, ceramics, metal, acrylic, and plastic.
Irregular Objects: Branding for trophies, helmets, perfume bottles, and packing boxes.
Interior Decor: Wood, tiles, and leather products.
Compare with other models in the same series: YD8034-X5 UV DTF Printer, YD2030-X5 UV DTF Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What is the maximum output speed? | 10 m²/h at 4-pass, 7 m²/h at 6-pass, 4 m²/h at 8-pass. |
| 2 | Is a laminator included? | The machine is supplied with a laminator and static discharge cord. |
| 3 | What power supply is required? | 2,000 W at 220 V, 50–60 Hz. |
