Information

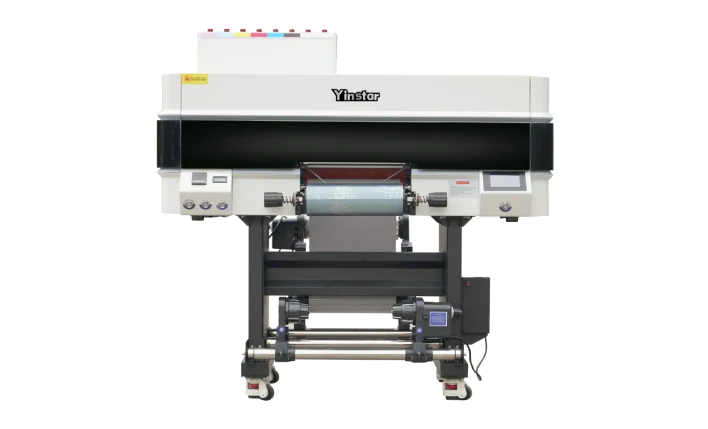

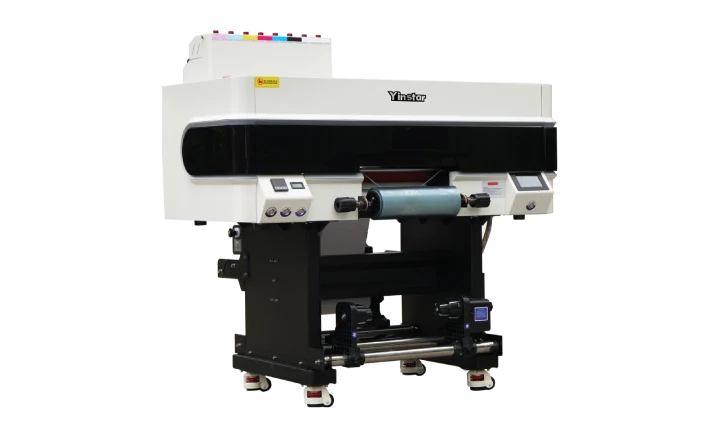

The YD8030-3 (UV) is a compact UV DTF printer running three Epson i1600-U1 printheads across a 300mm working width and 1.5mm material thickness, at 4.2 m²/h in 8-pass. It carries a six-colour ink set — CMYK plus Light Cyan and Light Magenta, plus White and Varnish — which is what separates it from the standard four-colour UV DTF units.
Motion runs on industrial-grade HIWIN linear rails, and an intelligent white ink circulation system keeps white pigment in suspension. Curing is by two LED UV lamps with air cooling.
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YD8030-3 (UV) |
| Printhead | 3 × Epson i1600-U1 |
| Print speed | 8-pass: 4.2 m²/h ／ 6-pass: 3 m²/h |
| Printing material | Soft advertising material, UV DTF film |
| Material width | ≤ 300 mm |
| Material thickness | ≤ 1.5 mm |
| Ink | CMYK + LC + LM + White + Varnish |
| UV curing system | Air cooling + two LED UV lamps |
| RIP software | Photoprint |
| Control board | Hoson / Sunyung |
| Power | 1,200 W |
| Packing size | 190 × 77 × 74 cm |
| Weight | 213 kg |
Top Features

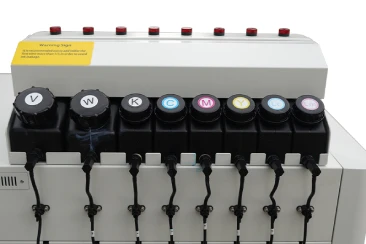

Ink supply system
Control panel

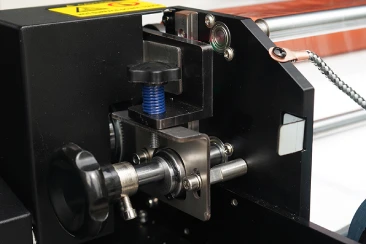

Anti-collision device of print head

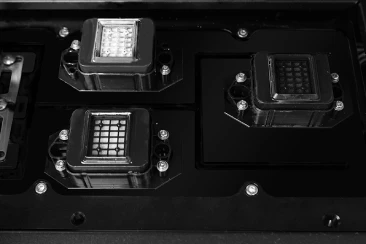

High precision machinery ink station

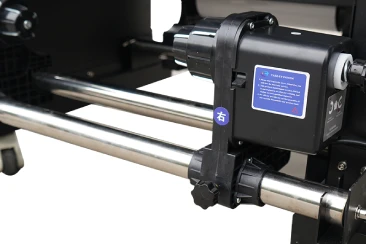

Feeding and peeling device
Selling Points
Enhanced Stability
Equipped with a high-precision machinery ink station and an advanced feeding/peeling device for smooth material handling.
Rich Visual Effects
Supports White and Varnish layers simultaneously to create stunning 3D embossed and high-gloss finishes.
Intelligent Maintenance
Features an anti-collision device for printhead protection and a specialized air-cooling + dual LED UV curing system.
Applications
Curved & Irregular Surfaces: Glassware, ceramic mugs, and thermos bottles.
Electronic Branding: Laptop shells, power banks, and smartphone accessories.
Industrial Labeling: Toolboxes, equipment tags, and specialized indoor signage.
Compare with other models in the same series: YD8034-X5 UV DTF Printer (discontinued — this model is its replacement), YD2030-X5 UV DTF Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What is the difference between the YD8030-3 and YD8030-X5? | Printheads and ink set. The YD8030-3 uses three Epson i1600-U1 heads with CMYK + LC + LM + White + Varnish. The YD8030-X5 uses three Epson F1080-A1 heads with CMYK + White + Varnish. |
| 2 | Up to what material thickness can it print? | Up to 1.5 mm at a maximum width of 300 mm. |
| 3 | What power supply is required? | 1,200 W at 220 V, 50–60 Hz. |
