Information

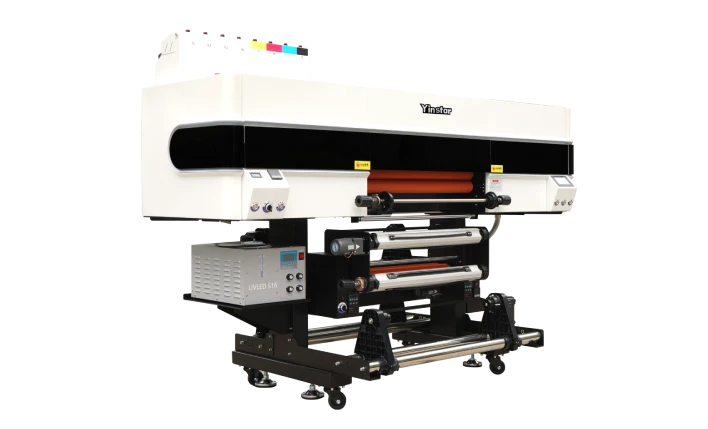

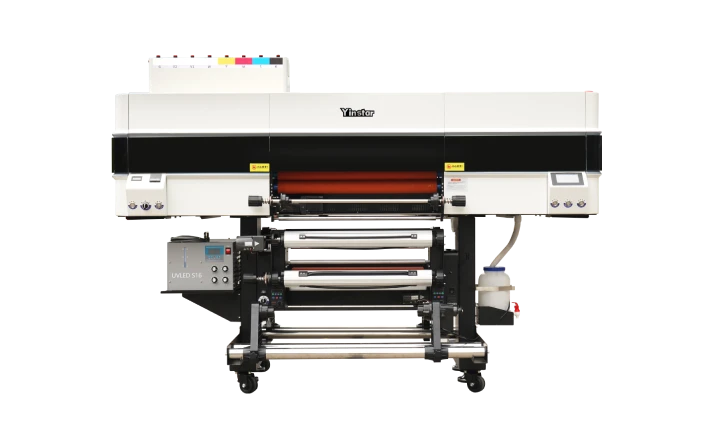

The YD8060-3 (UV) is a 600mm UV DTF printer with four Epson i3200-U1 printheads printing white, colour and two varnish channels at up to 3200 dpi, at 6 m²/h in 6-pass and 4.5 m²/h in 8-pass.
Its defining feature is the separated varnish channels: gloss oil and hot-stamping varnish are cured independently, which raises hot-stamping precision and produces an adhesion strong enough to resist peeling — without any glue in the process.
Main Parameters
| Parameter | Specification |
|---|---|
| Model | YD8060-3 (UV) |
| Printhead | 4 × Epson i3200-U1 |
| Print speed | 6-pass: 6 m²/h ／ 8-pass: 4.5 m²/h |
| Printing resolution | Up to 3200 dpi |
| Printing material | Soft advertising material, UV DTF film |
| Width | ≤ 600 mm |
| Thickness | ≤ 1.5 mm |
| Ink | White + Colour + Varnish + Varnish |
| UV curing system | LED lamp water chiller |
| RIP software | Photoprint |
| Control board | Hoson |
| Power | 2,500 W |
| Packing size | 228 × 112 × 80 cm (printer) ／ 115 × 50 × 53 cm (laminator) |
| Weight | 370 kg (printer) ／ 57 kg (laminator) |
Top Features
Powerful vacuum aluminium platform

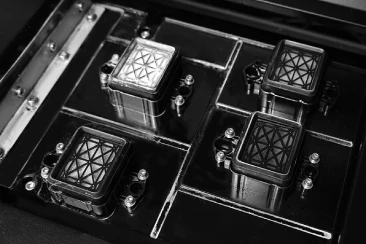

High precision machinery ink station

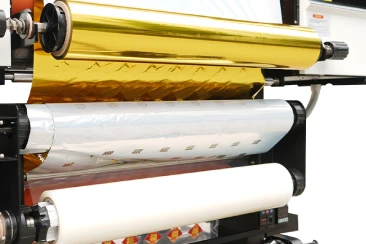

Laminating and hot stamping foil system
Ink supply system

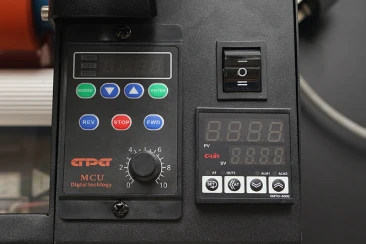

UV water cooling system
Selling Points
Maximum Productivity
The four-head array allows for faster carriage speeds without sacrificing the density of white ink or varnish.
Precision UV Curing
Equipped with advanced LED-UV lamps for instant curing, ensuring sharp edges and vibrant colors.
Industrial Chassis
Heavy-duty frame designed to minimize vibration during high-speed operation.
Applications
Mass Branding: Large-scale production of labels for electronics and industrial equipment.
Custom Signage: Outdoor durable stickers for vehicle graphics and commercial signage.
Promotional Goods: Bulk customization of metal tumblers and hard-shell cases.
Compare with other models in the same series: YD8034-X5 UV DTF Printer, YD2030-X5 UV DTF Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What does “no glue required” mean in practice? | The varnish channels provide the adhesion, so the transfer is applied without a separate glue step, and the bond resists peeling. |
| 2 | What is the difference from the YD8073-3? | Head count and ink channels: the YD8060-3 uses four Epson i3200-U1 heads with White + Colour + Varnish + Varnish at 6 m²/h (6-pass). The YD8073-3 uses three heads with CMYK + W + V at 10 m²/h (4-pass). Both print to a 600mm width. |
| 3 | What is the maximum resolution? | 3200 dpi. |
