Information

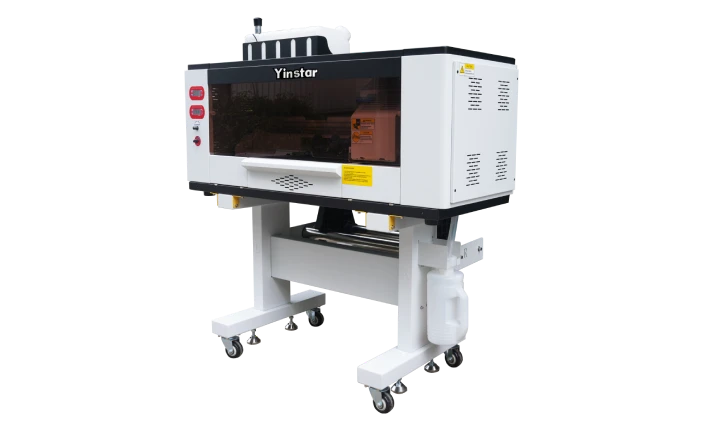

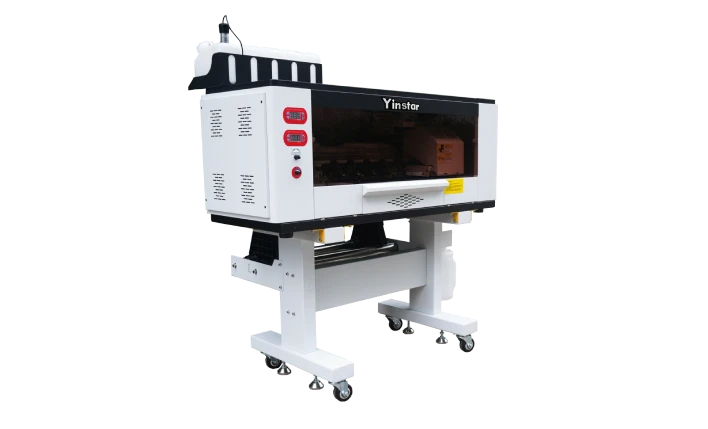

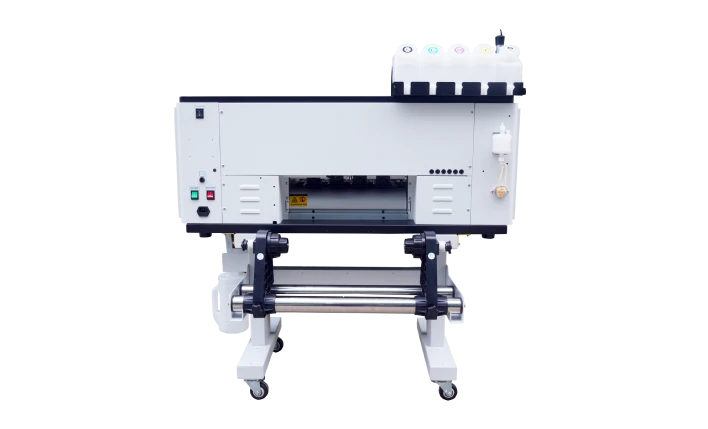

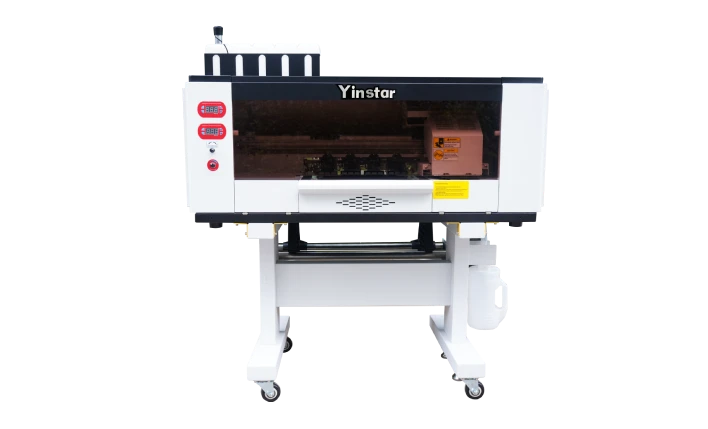

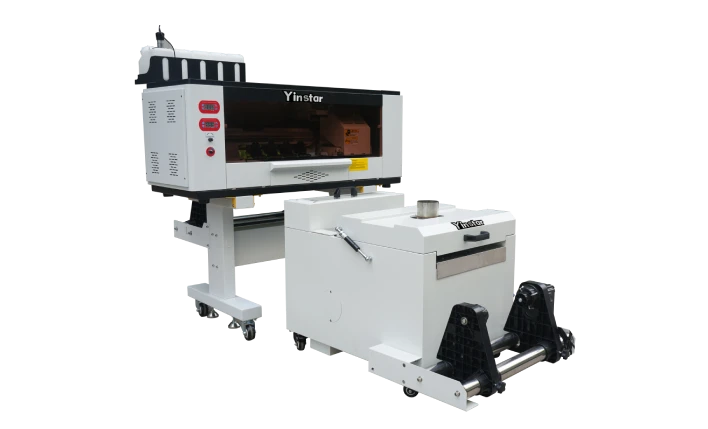

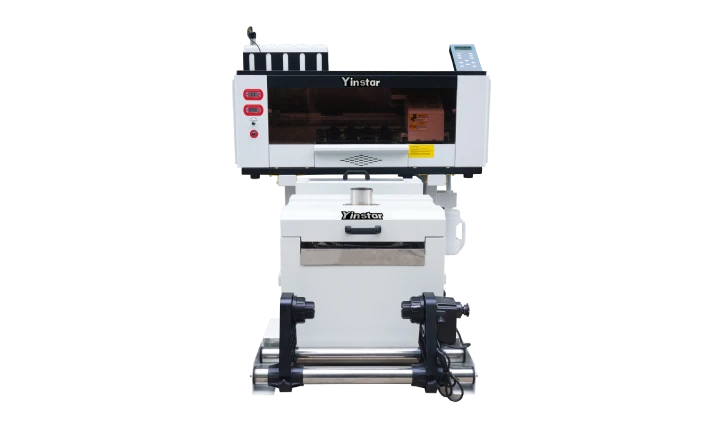

The YD2030-X5 is a 30cm DTF printer with two printheads, offered in two head options: Epson F1080-A1 (4.5 m²/h at 4-pass) or Epson i3200-A1 (7 m²/h at 4-pass). It ships with the DF-300 Pro powder shaker, whose three 400mm heating tubes run at 400W each to a melting temperature of 110°C.
Total footprint is compact: the printer crate is 146 × 65 × 62 cm and the shaker 81 × 64 × 79 cm, at 117 kg and 119 kg respectively.
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | YD2030-X5 |
| Printhead | 2 × Epson F1080-A1 or 2 × Epson i3200-A1 |
| Print speed (F1080-A1) | 4-pass: 4.5 m²/h ／ 6-pass: 3 m²/h ／ 8-pass: 2 m²/h |
| Print speed (i3200-A1) | 4-pass: 7 m²/h ／ 6-pass: 4.7 m²/h ／ 8-pass: 3.6 m²/h |
| Control board | Sunyung / Hoson |
| Working size | Less than 33 cm / 30 cm |
| Ink type | Pigment ink, CMYK + White |
| RIP software | RIIN |

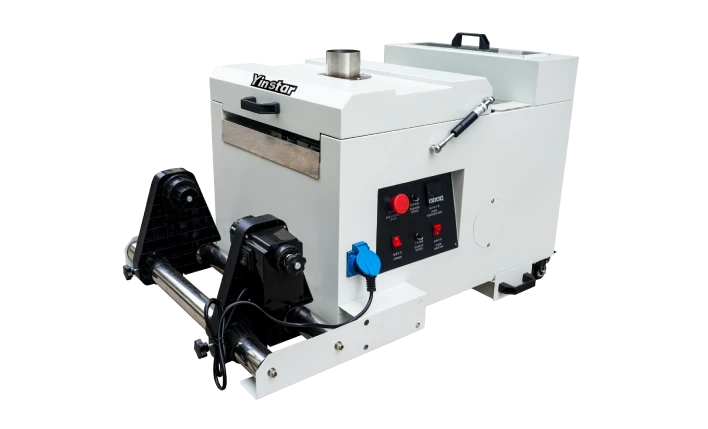

| Powder shaker model | DF-300 Pro |

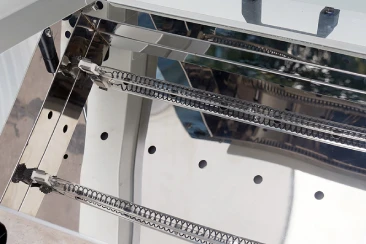

| Shaker heating tubes | 3 pcs × 400 mm, 400 W each |
| Shaker melting temperature | 110 °C |
| Printer power | 1,000 W |
| Shaker power | 1,250 W |
| Supply voltage | 220 V, 50/60 Hz (standard) |
| Operating environment | 18–30 °C, humidity 40–60% |
| Printer packing size | 146 × 65 × 62 cm |
| Shaker packing size | 81 × 64 × 79 cm |
| Printer weight | 117 kg |
| Shaker weight | 119 kg |
Top Features
Selling Points
Two printhead options let buyers trade speed against cost: Epson F1080-A1 at 4.5 m²/h in 4-pass, or Epson i3200-A1 at 7 m²/h in 4-pass. The bundled DF-300 Pro shaker uses three 400 mm heating tubes at 400 W each, holding a melting temperature of 110 °C for consistent powder cure.
Applications
- Small-batch garment decoration — T-shirts, tote bags, hoodies and gift items.
- Start-up print businesses — the smallest complete DTF line in the range, at the lowest footprint.
- Sample and short-run rooms inside larger factories.
Compare with other models in the same series: YD2070 2 Head DTF Printer with DF-700 Powder Shaker, YD8076-3A 60cm DTF Printer, YD8074-3A 60cm DTF Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | Which printhead should I choose? | Two options on the same platform: Epson F1080-A1 (4.5 m²/h at 4-pass, lower head cost) or Epson i3200-A1 (7 m²/h at 4-pass, higher throughput). |
| 2 | What power supply is required? | 1,000 W printer plus 1,250 W shaker at 220 V / 50–60 Hz. |
| 3 | What is the operating environment? | 18–30 °C at 40–60% humidity. |
