Information

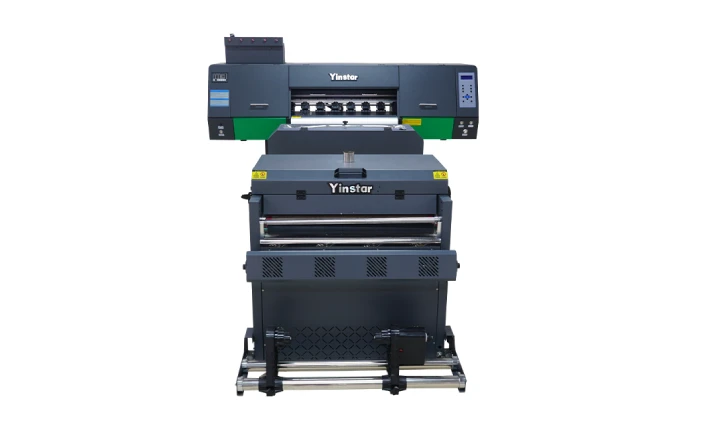

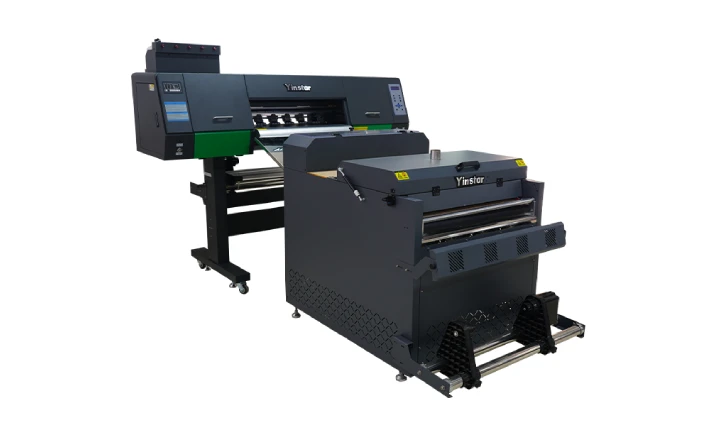

The YD2070-X5 is the F1080-A1 variant of the YD2070 platform: two Epson F1080-A1 printheads on a 60cm working width, rated at 5 m²/h in 4-pass and 3 m²/h in 6-pass, on a Sunyung control board.
Where the YD2070-3 trades on speed, the X5 trades on head cost and running cost — F1080-A1 heads are the lower-cost consumable option in this class.
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | YD2070-X5 |
| Printhead | 2 × Epson F1080-A1 |
| Print speed | 4-pass: 5 m²/h ／ 6-pass: 3 m²/h |
| Control board | Sunyung |
| Working size | Less than 60 cm |
| Ink type | Pigment ink, CMYK + White |
| Supply voltage | 220 V, 50/60 Hz (standard) |
| Printer power | 1,400 W |
| Printer packing size | 198 × 76 × 71 cm |
| Printer weight | 197 kg |
| Powder shaker packing size | 126 × 115 × 128 cm |
| Shaker weight | 239 kg |
Top Features

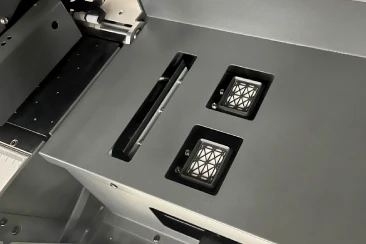

High precision machinery ink station

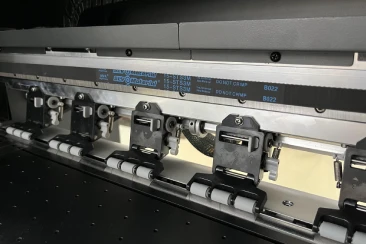

Precision material pinch roller
Temperature sensor

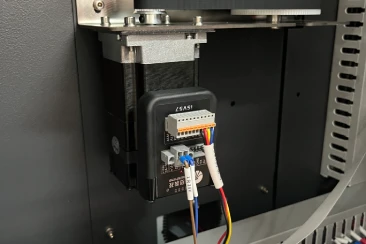

High-precision motor bearing structure

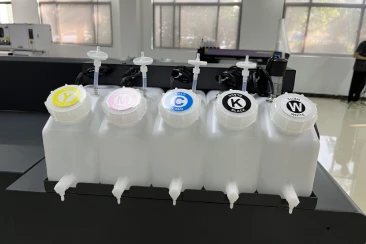

Large capacity ink supply system
Selling Points
Large-format capability at an economic price point; includes an automated powder shaker (DF-700) for a continuous workflow.
Applications
- Cost-sensitive first DTF investment — where head replacement cost matters more than throughput.
- Low-to-mid volume custom work — short runs, mixed designs, personalised orders.
- Distributors stocking a budget 60cm option — a lower price point to open new accounts.
Compare with other models in the same series: YD2070 2 Head DTF Printer with DF-700 Powder Shaker, YD8076-3A 60cm DTF Printer, YD8074-3A 60cm DTF Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | How does the YD2070-X5 differ from the YD2070-3? | Printheads and board: the X5 uses two Epson F1080-A1 heads on a Sunyung board at 5 m²/h (4-pass); the YD2070-3 uses two Epson i3200-A1 heads on a Hoson board at 14 m²/h (4-pass). |
| 2 | What power supply is required? | Printer 1,400 W at 220 V / 50–60 Hz. |
| 5 | What RIP software is supported? | RIIN. |
