Information

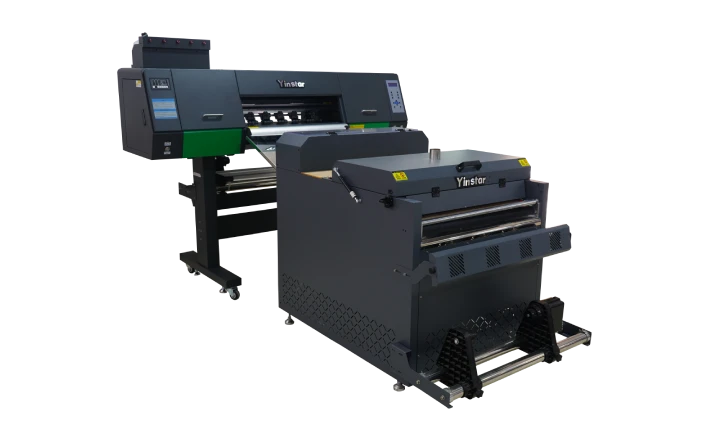

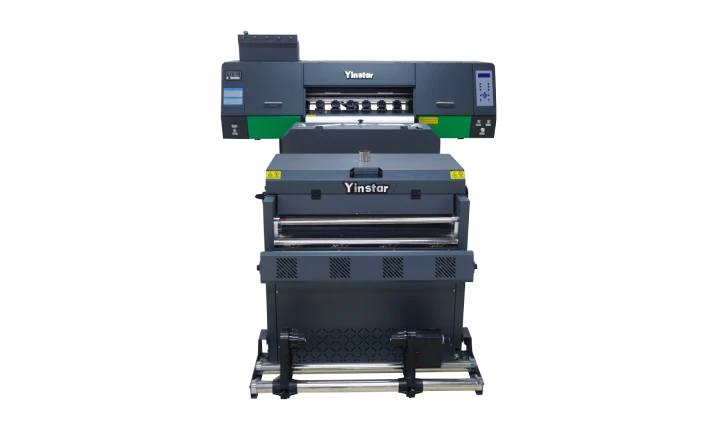

This configuration pairs the two-head YD2070 DTF printer with the DF-700W powder shaker as a single production line. The printer is rated at 14 m²/h in 4-pass and 8 m²/h in 6-pass across a 60cm working width; the shaker adds 4,300W of melting capacity.
The printer draws 1,400W and the shaker 4,300W, and the two units ship in separate crates (198 × 76 × 71 cm and 126 × 115 × 128 cm).
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | YD2070 (2-head) |
| Printhead | 2 × Epson i3200-A1 |
| Print speed | 4-pass: 14 m²/h ／ 6-pass: 8 m²/h |
| Working size | Less than 60 cm |
| Ink type | Pigment ink, CMYK + White |
| RIP software | RIIN |
| Printer power | 1,400 W |
| Powder shaker model | DF-700W |
| Shaker power | 4,300 W |
| Supply voltage | 220 V, 50/60 Hz (standard) |
| Printer packing size | 198 × 76 × 71 cm |
| Printer weight | 197 kg |
| Shaker packing size | 126 × 115 × 128 cm |
| Shaker weight | 239 kg |
Top Features

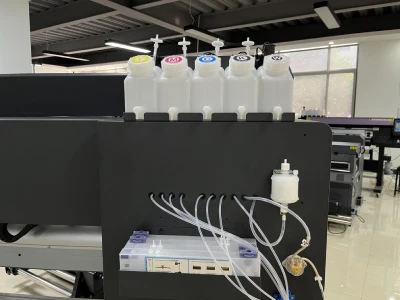

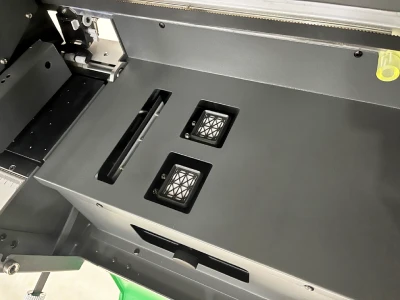

High Precision Ink Station
High precision machinery ink station for stable and reliable ink supply.

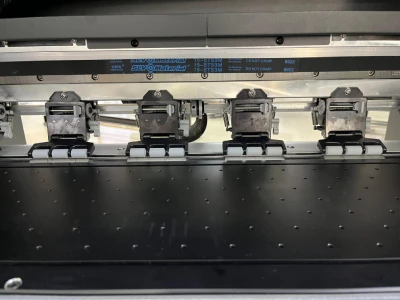

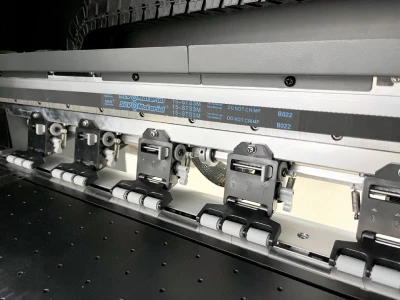

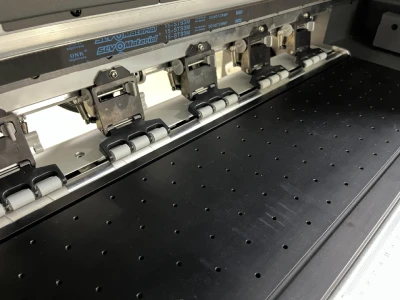

Precision Pinch Roller
Precision material pinch roller ensures smooth, accurate film feeding.
Temperature Sensor
Temperature sensor monitors conditions in real time for stable printing.
Precision Motor Bearing
High-precision motor bearing structure for smooth operation and long service life.

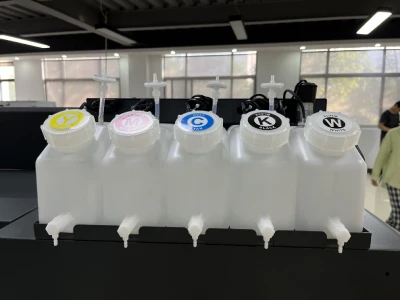

Large Ink Supply
Large capacity ink supply system (CMYK+White) reduces refill frequency for efficient continuous production.
High Speed
YD2070-3 high-speed configuration: 14m²/h @4pass, 8m²/h @6pass, 6m²/h @8pass.
Epson Printhead
Equipped with Epson F1080-A1 / i3200-A1 printheads for high precision and vivid colors.
Complete DTF Solution
Works with the DF-700 powder shaker as a complete DTF production solution.
Selling Points
High Productivity
YD2070-3 reaches 14m²/h at 4-pass for high DTF output and fast order fulfillment.
Epson Printheads
Epson printheads deliver fine droplets for sharp details and vivid colors.
CMYK+White
Pigment CMYK+White inks print directly onto PET film, including for dark garments.
One-stop Solution
Printer + DF-700 powder shaker forms a one-stop DTF line — no matching hassle.
Stable & Durable
Precision motor bearings and pinch rollers ensure stable transport and lower downtime.
Large Ink Capacity
Large ink supply cuts refill downtime for worry-free continuous production.
Applications
- New DTF lines stood up as a package — one order, matched printer and shaker.
- Contract decoration shops running continuous garment work.
- Distributors assembling resale bundles for their own customers.
Customized printing on T-shirts, hoodies, sportswear and workwear
DTF printing for canvas bags, pillows, caps, scarves and other textiles & accessories
PET transfer film printing, combined with the DF-700 powder shaker for powder shaking and drying — a complete garment decoration workflow
Compare with other models in the same series: YD8076-3A 60cm DTF Printer, YD8074-3A 60cm DTF Printer, YD8074-3 60cm DTF Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 2 | What power supply is required? | 1,400 W printer + 4,300 W shaker at 220 V / 50–60 Hz, on two circuits. |
