Information

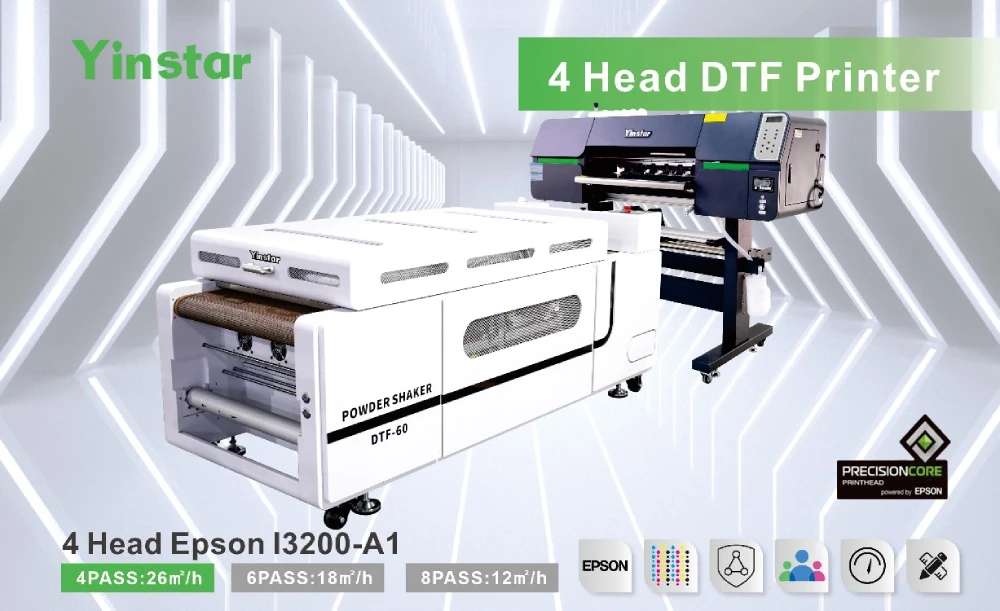

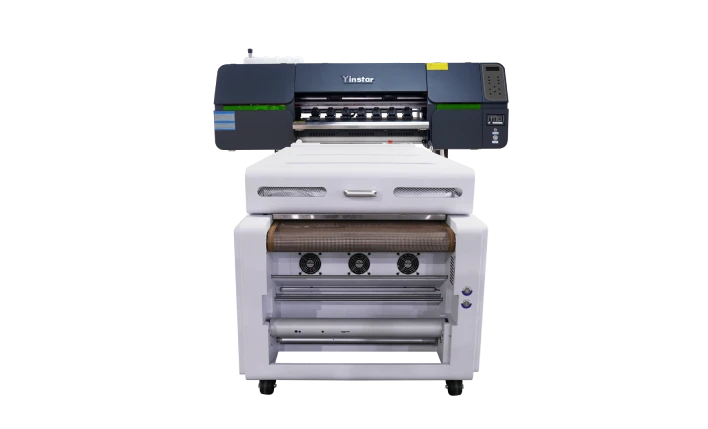

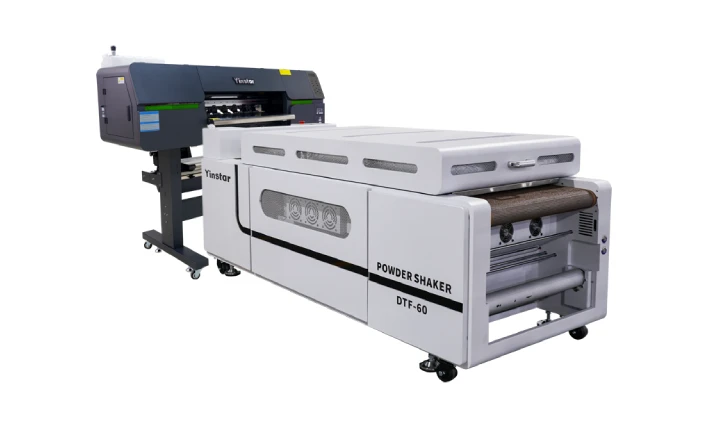

The YD8074-3 is a 60cm DTF printer carrying four Epson i3200-A1 printheads on a single carriage, laying down CMYK and White in one pass. It is supplied as a production pair with the DF-900L(A) powder shaker, which spans the full 60cm web with 13 heating tubes rated 300W each.
Rated output is 26 m²/h at 4-pass, 18 m²/h at 6-pass and 12 m²/h at 8-pass — so operators can trade speed against detail per job. Combined power draw is 5,500W (1,500W printer + 4,000W shaker), and the two units ship in separate crates.
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | YD8074-3 |
| Printhead | 4 × Epson i3200-A1 |
| Control board | Hoson |
| Ink type | Pigment ink, CMYK + White |
| Working size | Less than 60 cm |
| Print speed | 4-pass: 26 m²/h ／ 6-pass: 18 m²/h ／ 8-pass: 12 m²/h |
| RIP software | RIIN |
| Printer power | 1,500 W |
| Supply voltage | 220 V, 50/60 Hz (standard) |
| Operating temperature | 15–30 °C |
| Printer packing size | 230 × 76 × 86 cm |
| Printer weight | 272 kg |
| Powder shaker model | DF-900L(A) |
| Shaker working width | Less than 60 cm |

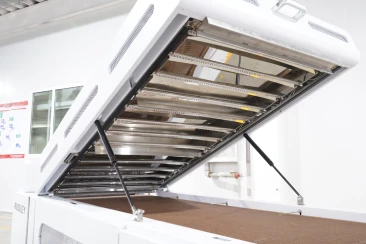

| Shaker heating tubes | 13 pcs × 600 mm, 300 W each |
| Shaker power | 4,000 W |
| Shaker packing size | 231 × 108 × 113 cm |
| Shaker weight | 375 kg |
Top Features
Selling Points
Offers nearly double the output of standard 2-head models; includes a large-capacity bulk ink system and advanced heating for rapid drying.
Applications
- High-volume garment print shops — lines that measure output per shift; 26 m²/h at 4-pass is rated for continuous running.
- Promotional product and teamwear distributors — large same-design orders with tight delivery windows, where the 60cm width covers full-size panels without tiling.
- In-house print rooms at apparel brands — bringing transfer production in-house; printer and shaker run as one line from a single operator position.
Compare with other models in the same series: YD2070 2 Head DTF Printer with DF-700 Powder Shaker, YD8074-3A 60cm DTF Printer, YD2070-X5 60cm DTF Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | What power supply does the YD8074-3 and DF-900L(A) pair require? | Printer 1,500 W plus shaker 4,000 W — 5,500 W total at 220 V / 50–60 Hz. Two separate circuits are recommended so the shaker’s heater load does not affect the printer. |
| 2 | Which RIP software is supported? | RIIN. |
