Information

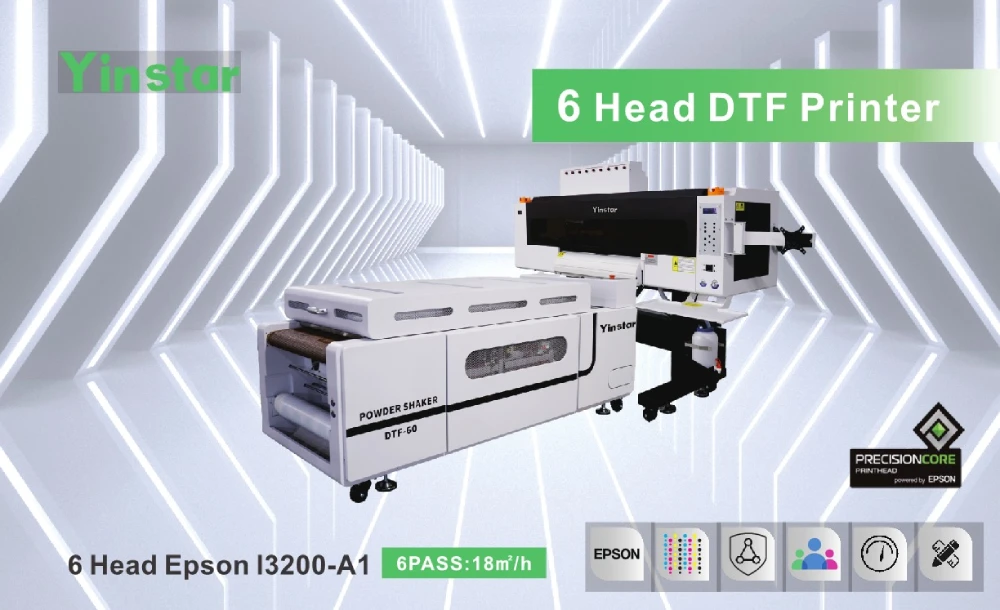

The YD8076-3 is a 60cm DTF printer with six Epson i3200-A1 printheads running a nine-colour configuration — CMYK plus Orange, Red, Green and Blue, plus White — at 18 m²/h in 6-pass mode. The extended ink set widens the printable gamut beyond standard CMYK, which matters most on brand-sensitive colour work and gradients.

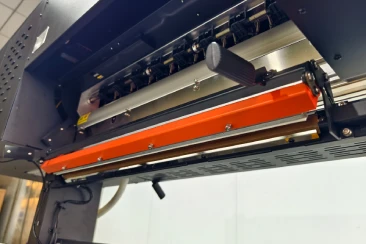

The machine carries a film splicing system, a tri-colour alarm for real-time status, and a variable-frequency powder shaker. After reloading film there is no need to reposition.
Main Parameters
| Parameter | Specification |
|---|---|
| Printer model | YD8076-3 |
| Printhead | 6 × Epson i3200-A1 |
| Ink configuration | Pigment ink, 8 colour + White (9 colours total) |
| Print speed | 6-pass: 18 m²/h (CMYK + ORGB + W) |
| Control board | Hoson |
| Working size | Less than 60 cm |
| RIP software | RIIN |
| Printer power | 2,200 W |
| Supply voltage | 220 V, 50/60 Hz (standard) |
| Operating temperature | 15–30 °C |
| Printer packing size | 226 × 96 × 88 cm |
| Printer weight | 330 kg |
| Powder shaker model | DF-900L(A) |
| Shaker working width | Less than 60 cm |
| Shaker heating tubes | 13 pcs × 600 mm, 300 W each |
| Shaker power | 4,000 W |
| Shaker packing size | 231 × 108 × 113 cm |
| Shaker weight | 375 kg |
Top Features
Selling Points
Six Epson i3200-A1 printheads in a nine-colour configuration (CMYK plus ORGB plus White) widen the printable gamut well beyond standard CMYK. Output reaches 18 m²/h at 6-pass on a working width under 60 cm, driven by a Hoson control board with RIIN RIP software.
Applications
- Branded apparel and licensed merchandise — where colour accuracy on logos and gradients is contractually important.
- Print shops upgrading from four-colour DTF — same 60cm working width, wider gamut, no change of floor plan.
- High-mix production — the film splicing system keeps long runs moving when rolls are changed.
Compare with other models in the same series: YD2070 2 Head DTF Printer with DF-700 Powder Shaker, YD8074-3A 60cm DTF Printer, YD2070-3 60cm DTF Printer.
FAQ
| # | Question | Answer |
|---|---|---|
| 1 | How is the YD8076-3 different from the YD8074-3? | The YD8076-3 runs six printheads in a nine-colour configuration (CMYK + Orange, Red, Green, Blue + White) at 2,200 W, and includes a film splicing system. The YD8074-3 runs four printheads in CMYK + White at 1,500 W. |
| 2 | Which RIP software is supported? | RIIN. |
